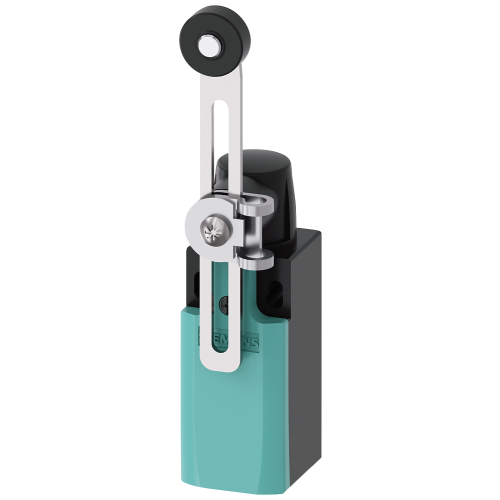

SIEMENS Zwenkhefboom verstelbaar 3SE52320BK50
Artikelnummer: 11000724
Artikelnummer fabrikant: 3SE52320BK50
EAN Code: 4011209694071
Siemens AG, SIRIUS 3SE5, SIRIUS POSITION SWITCH, Position switch, plastic enclosure, EN50047, 31 mm device connection, Gedwongen contact (niet momentgerelateerd), Kunststof, Geen, Geen, Geen, Kubus, IP65, Zwenkhefboom, Geen, Rolstootnok recht
Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/1 NC slow-action contacts adjustable-length twist lever right/left adjustable with plastic roller 19 mm SIRIUS 3SE5 mechanical position switch for position sensing of machine parts and position monitoring of protective devices. The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various
| Beschermingsgraad (IP) | IP65 |
| Materiaal behuizing | Kunststof |
| Uitvoering elektrische aansluiting | Overig |
| Beschermingsgraad (NEMA) | 12 |
| Uitvoering van het bedieningselement | Zwenkhefboom |
| Schakelfunctie vergrendelend | Nee |
| Aantal contacten als verbreekcontact | 1 |
| Aantal contacten als maakcontact | 1 |
| Aantal contacten als wisselcontact | 0 |
| Bouwvorm behuizing | Kubus |
| Coating behuizing | Overig |
| Met status-indicatie | Nee |
| Uitvoering interface voor veiligheidscommunicatie | Geen |
| Explosieveiligheidscategorie voor gas | Geen |
| Explosieveiligheidscategorie voor stof | Geen |
| Uitvoering van de interface | Geen |
| Breedte sensor | 31 mm |
| Hoogte van de sensor | 49,4 mm |
| Lengte sensor | 182 mm |
| Omgevingstemperatuur tijdens bedrijf | -25.000 - 85.000 °C |
| Schakelfunctie | Gedwongen contact (niet momentgerelateerd) |
| Gedwongen openend | Nee |
| Aantal veiligheidshulpcontacten | 0 |
| Nom. bedrijfsstroom Ie bij DC-13, 125 V | 0,55 A |
| Uitlijning van het bedieningselement | Rolstootnok recht |
| Nom. bedrijfsstroom Ie bij DC-13, 24 V | 3 A |
| Nom. bedrijfsstroom Ie bij AC-15 bij 24 V | 6 A |
| Model | SIRIUS 3SE5 |
