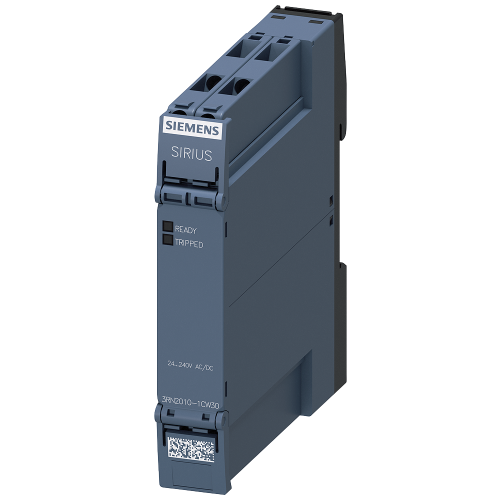

SIEMENS thermistor-meetrelais 3RN20101CW30
Artikelnummer: 9877911
Artikelnummer fabrikant: 3RN20101CW30
EAN Code: 4047621004433
Siemens AG, SIRIUS 3RN2, THERMISTOR MOT. PROT. 1NO 1NC BI..., Thermistor motor protection relay, standard, screw terminal, 1 NO, 1 N, Schroefaansluiting
thermistor motor protection relay compact evaluation unit 17.5 mm enclosure screw terminal 1 NO contact, 1 NC Us = 24 V-240 V AC/DC automatic RESET suitable for bimetallic switch 2 LEDs (ready/tripped) electrical separation for protecting motors against overheating by means of direct temperature measurement Direct measurement of the motor winding temperature means that the motor is protected even under abnormal conditions such as heavy starting, braking mode, frequent switching or insufficient cooling, and therefore renders precautionary over-dimensioning of the motor unnecessary. It is not necessary to set device parameters as PTC sensors or bimetallic switches are used. LEDs enable fast error diagnostics. The devices are climate-resistant, safe to touch and can be used worldwide thanks to their wide voltage range and international certifications. Available as monostable or bistable evaluation unit, with and without ATEX approval, with one or two sensor circuits as well as auto RESET,
| Breedte | 17,5 mm |
| Hoogte | 100 mm |
| Diepte | 90 mm |
| Aantal contacten als verbreekcontact | 1 |
| Aantal contacten als maakcontact | 1 |
| Aantal contacten als wisselcontact | 0 |
| Aansluitwijze hulpstroomcircuit | Schroefaansluiting |
| Foutenregistratie mogelijk | Nee |
| Externe reset mogelijk | Nee |
| Aantal meetkringen | 1 |
| Model | SIRIUS 3RN2 |
