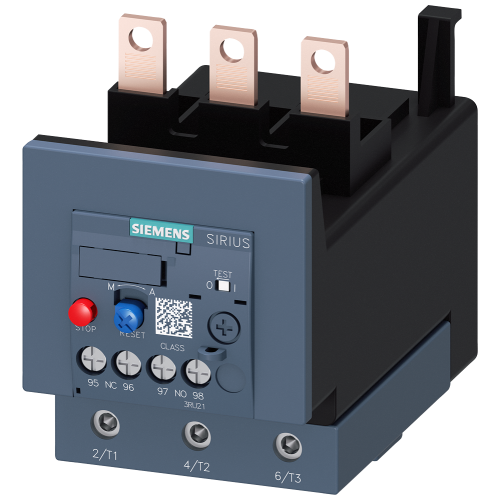

SIEMENS thermische beveiliging 57-75a 3RU2146-4KB0
Artikelnummer: 11008290
Artikelnummer fabrikant: 3RU21464KB0
EAN Code: 4047621012902
Siemens AG, SIRIUS 3RU2, Therm. overload relay, 57...75 A, Overload relay, 57-75 A, for motor protection, S3, Class 10, contactor, Directaanbouw, CLASS 10, Schroefaansluiting
Overload relay 57...75 A Thermal For motor protection Size S3, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.
| Montagewijze | Directaanbouw |
| Aantal hulpcontacten als maakcontact | 1 |
| Aantal hulpcontacten als verbreekcontact | 1 |
| Aansluitwijze hoofdstroomcircuit | Schroefaansluiting |
| Max. nom. bedrijfsspanning Ue | 1.000 V |
| Aantal hulpcontacten als wisselcontact | 0 |
| Aanloopklasse | CLASS 10 |
| Instelbaar stroombereik | 57.000 - 75.000 A |
| Reset-functie ingang | Nee |
| Reset-functie automatisch | Ja |
| Reset-functie drukknop | Ja |
| Model | SIRIUS 3RU2 |
