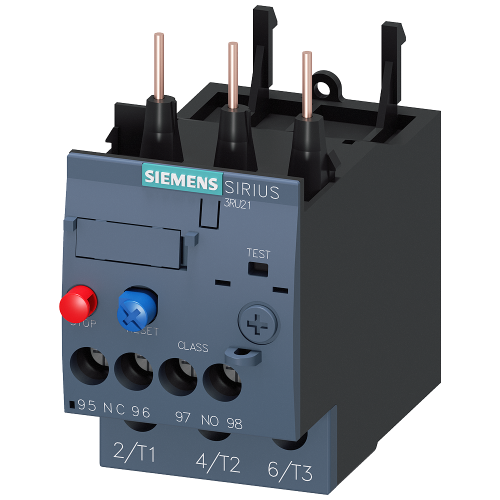

SIEMENS thermische beveiliging 5.5-8a 3RU2126-1HB0

Artikelnummer 11003713

Artikelnummer: 11003713
Artikelnummer fabrikant: 3RU21261HB0
EAN Code: 4011209780903

Siemens AG, SIRIUS 3RU2, Therm. overload relay 5.5 - 8.0 A, Overload relay 5.5-8.0 A motor protection S0, Class 10, contactor moun, Directaanbouw, CLASS 10, Schroefaansluiting

Overload relay 5.5...8.0 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11003713
Artikelnummer fabrikant: 3RU21261HB0
EAN Code: 4011209780903

Siemens AG, Directaanbouw, 1, 1, CLASS 10, Schroefaansluiting, 690 V, 5.500 - 8.000 A, SIRIUS 3RU2

Eigenschappen
Algemeen
Montagewijze Directaanbouw
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 1
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Max. nom. bedrijfsspanning Ue 690 V
Aantal hulpcontacten als wisselcontact 0
Aanloopklasse CLASS 10
Instelbaar stroombereik 5.500 - 8.000 A
Reset-functie ingang Nee
Reset-functie automatisch Ja
Reset-functie drukknop Ja
Model SIRIUS 3RU2
