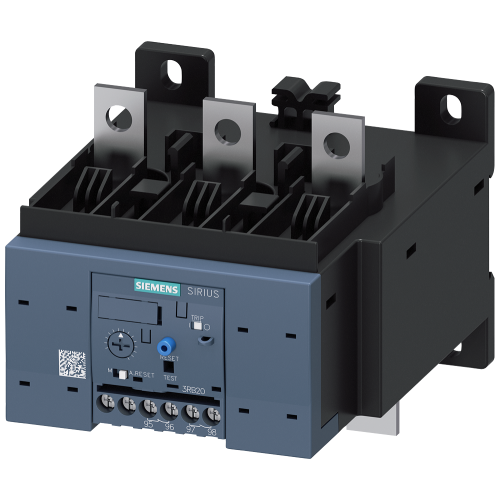

SIEMENS thermische beveilging 50-200a 3RB2056-1FC2

Artikelnummer 11004350

Artikelnummer: 11004350
Artikelnummer fabrikant: 3RB20561FC2
EAN Code: 4011209638235

Siemens AG, SIRIUS 3RB2, OVERLOAD RELAY 50...200 A, Overload relay, 50-200 A, for motor protection, S6, Class 10, Manual-A, Separate opstelling, AC

Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: Screw terminal Manual-Automatic-Reset SIRIUS 3RB2 electronic overload relay for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. With their low heat loss, they are particularly energy-efficient and help to reduce the temperature rise in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX) are a matter of course. Can be supplied with different setting ranges of the overload release and with different trip classes. They are available with screw or spring-loaded terminals for fast, maintenance-free and vibration-proof connection, as we

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11004350
Artikelnummer fabrikant: 3RB20561FC2
EAN Code: 4011209638235

Siemens AG, Separate opstelling, 1, 1, 120, 119, 155, 50.000 - 200.000 A, SIRIUS 3RB2, 200, AC

Eigenschappen
Algemeen
Breedte 120
Montagewijze Separate opstelling
Hoogte 119
Diepte 155
Type stuurspanning AC
Nom. (meet)schakelstroom 200
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 1
Aansluitwijze hoofdstroomcircuit Overig
Externe stroomvoorziening vereist Nee
Aantal hulpcontacten als wisselcontact 0
Aanloopklasse Overig
Instelbaar stroombereik 50.000 - 200.000 A
Reset-functie ingang Nee
Reset-functie automatisch Ja
Reset-functie drukknop Ja
Model SIRIUS 3RB2
