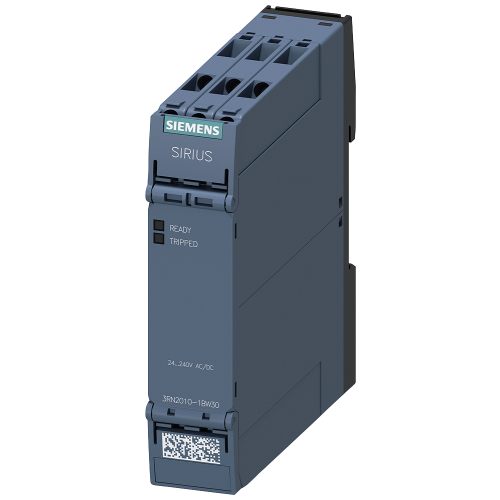

SIEMENS temperatuur meet relais 3RN2010-1BW30

Artikelnummer 6292227

Artikelnummer: 6292227
Artikelnummer fabrikant: 3RN20101BW30
EAN Code: 4047621004464

Siemens AG, SIRIUS 3RN2, THERMISTOR MOTOR PROTECTION 2CO ..., Thermistor motor protection relay, standard, screw terminal, 2 CO, 24-, Schroefaansluiting

thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw terminal 2 changeover contacts Us = 24 V-240 V AC/DC Auto RESET suitable for bimetallic switch 2 LEDs (ready/tripped) electrical isolation for protecting motors against overheating by means of direct temperature measurement Direct measurement of the motor winding temperature means that the motor is protected even under abnormal conditions such as heavy starting, braking mode, frequent switching or insufficient cooling, and therefore renders precautionary over-dimensioning of the motor unnecessary. It is not necessary to set device parameters as PTC sensors or bimetallic switches are used. LEDs enable fast error diagnostics. The devices are climate-resistant, safe to touch and can be used worldwide thanks to their wide voltage range and international certifications. Available as monostable or bistable evaluation unit, with and without ATEX approval, with one or two sensor circuits as well as auto RESET, m

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292227
Artikelnummer fabrikant: 3RN20101BW30
EAN Code: 4047621004464

Siemens AG, 22,5 mm, 100 mm, 90 mm, 1, Schroefaansluiting, 2, SIRIUS 3RN2

Eigenschappen
Algemeen
Breedte 22,5 mm
Hoogte 100 mm
Diepte 90 mm
Aantal contacten als verbreekcontact 0
Aantal contacten als maakcontact 0
Aantal contacten als wisselcontact 2
Aansluitwijze hulpstroomcircuit Schroefaansluiting
Foutenregistratie mogelijk Nee
Externe reset mogelijk Nee
Aantal meetkringen 1
Model SIRIUS 3RN2
