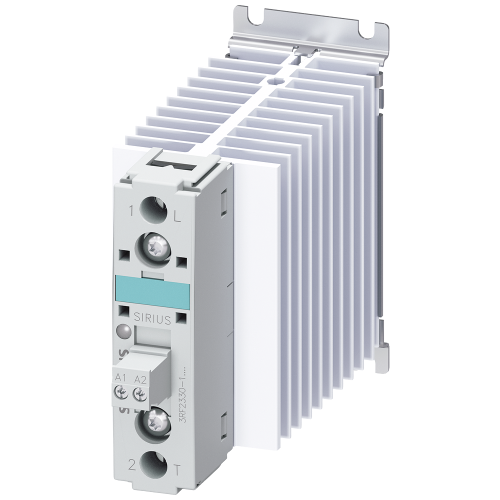

SIEMENS solid-staterelais 15-24vdc 3RF2330-1BA02

Artikelnummer 6292241

Artikelnummer: 6292241
Artikelnummer fabrikant: 3RF23301BA02
EAN Code: 4011209572904

Siemens AG, SIRIUS 3RF23, SEMI-CONDUCTOR CONTACTOR 3RF2, Solid-state contactor 3RF2, 1-ph. AC51 30 A/AC 15 15 A 24-230 V/24 V D, Schroefaansluiting, Maakcontact (NO), AC, IP20, 24.000 - 230.000, 24.000 - 230.000, DC

***phase-out type*** solid-state contactor 1-phase 3RF2 AC 15 / 15 A / 40 °C 24-230 V / 24 V DC instantaneous switching for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the DIN rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections. In

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292241
Artikelnummer fabrikant: 3RF23301BA02
EAN Code: 4011209572904

Siemens AG, 1, 15.000 - 24.000 V, 24.000 - 24.000 V, 30 A, DC, 30 A, 45, 100, 139, Schroefaansluiting, Maakcontact (NO), AC, IP20, 24.000 - 230.000, 24.000 - 230.000, SIRIUS 3RF23

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 45
Hoogte 100
Diepte 139
Uitvoering elektrische aansluiting Schroefaansluiting
Bedrijfsspanning bij AC 60 Hz 24.000 - 230.000
Bedrijfsspanning bij AC 50 Hz 24.000 - 230.000
Type stuurspanning DC
Uitvoering schakelelement Maakcontact (NO)
Nom. stuurspanning Us bij DC 15.000 - 24.000 V
Aantal fasen 1
Met LED indicatie Ja
Modulaire uitvoering (voor railmontage) Ja
Bedrijfsspanning 24.000 - 24.000 V
Met afneembare klemmen Ja
Spanningstype van de bedrijfsspanning AC
Nom. bedrijfsstroom Ie bij AC-1 30 A
Nom. bedrijfsstroom Ie bij AC-51 30 A
Model SIRIUS 3RF23
