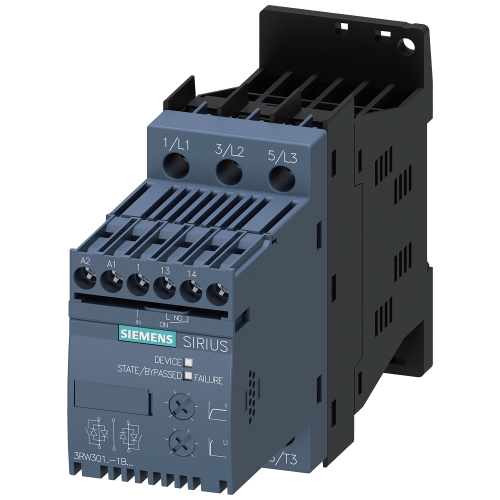

SIEMENS softstarter 5,5kw 24v 12,5a 3RW3017-1BB04

Artikelnummer 6292126

Artikelnummer: 6292126
Artikelnummer fabrikant: 3RW30171BB04
EAN Code: 4011209719637

Siemens AG, SIRIUS 3RW30, 3RW30 S00 12,5A 480V 24V screw, Soft starter S00, 12.5 A, 5.5 kW/400 V, 40 degrees, 480-200 V AC, 24 V, IP20

SIRIUS soft starter S00 12.5 A, 5.5 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals for standard applications for the soft starting of three-phase asynchronous motors Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA). The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292126
Artikelnummer fabrikant: 3RW30171BB04
EAN Code: 4011209719637

Siemens AG, IP20, 12,5 A, 3 kW, 5,5 kW, SIRIUS 3RW30

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Met display Nee
Aanloopklasse Overig
Nom. bedrijfsstroom Ie bij 40 °C 12,5 A
Nom. vermogen draaistroommotor, standaardschakeling, bij 230 V 3 kW
Nom. vermogen draaistroommotor, standaardschakeling, bij 400 V 5,5 kW
Geïntegreerde overbelastingsbeveiliging motor Nee
Interne by-pass schakelaar Ja
Torque control Nee
Model SIRIUS 3RW30
