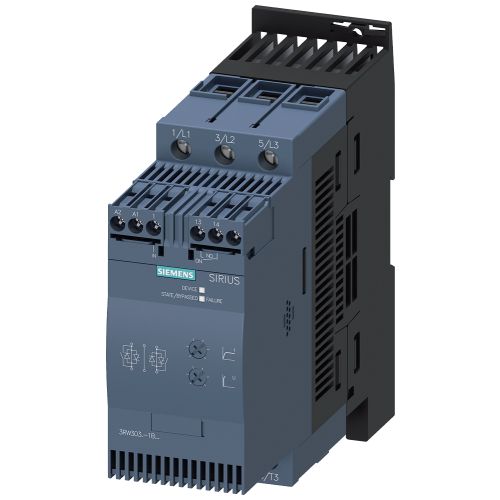

SIEMENS softstarter 22kw 3RW30361BB04
Artikelnummer: 11000922
Artikelnummer fabrikant: 3RW30361BB04
EAN Code: 4011209719262
Siemens AG, SIRIUS 3RW30, 3RW30 S2 45A 480V 24V screw, Soft starter S2, 45 A, 22 kW/400 V, 40 degrees, 480-200 V AC, 24 V AC/, IP00
SIRIUS soft starter S2 45 A, 22 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals for standard applications for the soft starting of three-phase asynchronous motors Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA). The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44
| Beschermingsgraad (IP) | IP00 |
| Met display | Nee |
| Aanloopklasse | Overig |
| Nom. bedrijfsstroom Ie bij 40 °C | 45 A |
| Nom. vermogen draaistroommotor, standaardschakeling, bij 230 V | 11 kW |
| Nom. vermogen draaistroommotor, standaardschakeling, bij 400 V | 22 kW |
| Geïntegreerde overbelastingsbeveiliging motor | Nee |
| Interne by-pass schakelaar | Ja |
| Torque control | Nee |
| Model | SIRIUS 3RW30 |
