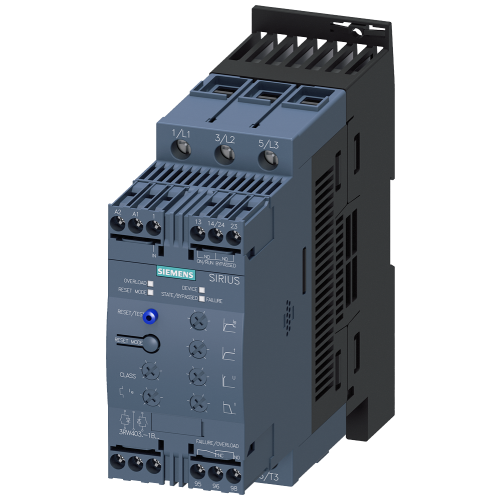

SIEMENS softstarter 200-480v 63a 24v 30kw 3RW40371BB04

Artikelnummer 11001127

Artikelnummer: 11001127
Artikelnummer fabrikant: 3RW40371BB04
EAN Code: 4011209692053

Siemens AG, SIRIUS 3RW40, 3RW40 S2 63A 480V 24V screw, Soft starter S2, 63 A, 30 kW/400 V, 40 degrees, 480-200 V AC, 24 V AC/, IP00

SIRIUS soft starter S2 63 A, 30 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals for standard applications for the soft starting and ramp-down of three-phase asynchronous motors Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11001127
Artikelnummer fabrikant: 3RW40371BB04
EAN Code: 4011209692053

Siemens AG, IP00, 63 A, 18,5 kW, 30 kW, SIRIUS 3RW40

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP00
Met display Nee
Aanloopklasse Overig
Nom. bedrijfsstroom Ie bij 40 °C 63 A
Nom. vermogen draaistroommotor, standaardschakeling, bij 230 V 18,5 kW
Nom. vermogen draaistroommotor, standaardschakeling, bij 400 V 30 kW
Geïntegreerde overbelastingsbeveiliging motor Ja
Interne by-pass schakelaar Ja
Torque control Nee
Model SIRIUS 3RW40
