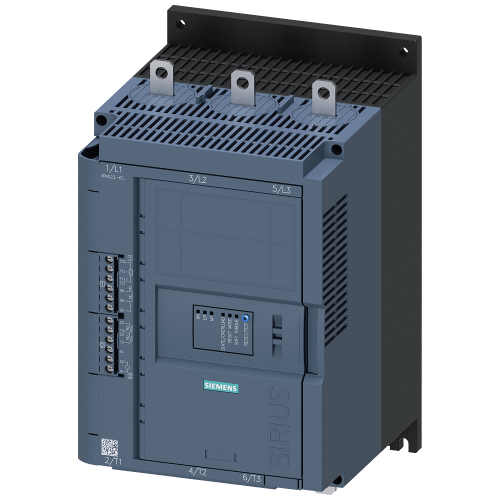

SIEMENS softstarter 200-480v 143a 24vac/dc 3RW52356TC04

Artikelnummer 9877943

Artikelnummer: 9877943
Artikelnummer fabrikant: 3RW52356TC04
EAN Code: 4047621038612

Siemens AG, SIRIUS 3RW52, 3RW52 480V 143A 24V screw therm, SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC screw terminals thermi, IP00, Instelbaar

SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC Screw terminals Thermistor input for simple applications for soft starting and stopping of three-phase asynchronous motors Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative Soft Torque function ensures that the

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 9877943
Artikelnummer fabrikant: 3RW52356TC04
EAN Code: 4047621038612

3RW52356TC04

Siemens AG, 200.000 - 480.000 V, IP00, Instelbaar, 143 A, SIRIUS 3RW52

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP00
Nom. spanning Ue 200.000 - 480.000 V
Met display Nee
Aanloopklasse Instelbaar
Nom. bedrijfsstroom Ie bij 40 °C 143 A
Geïntegreerde overbelastingsbeveiliging motor Ja
Torque control Nee
Model SIRIUS 3RW52
