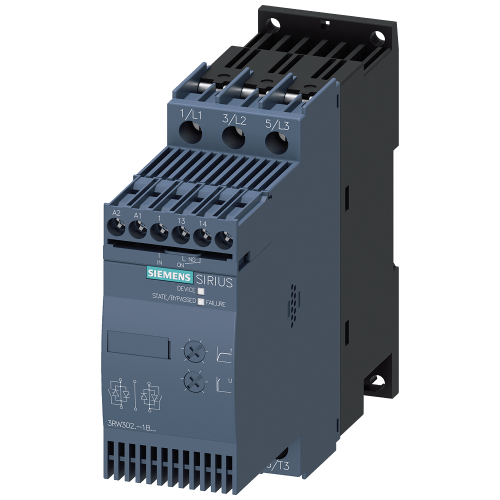

SIEMENS softstarter 15kw 3RW30271-1BB14
Artikelnummer: 11008397
Artikelnummer fabrikant: 3RW30271BB14
EAN Code: 4011209719453
Siemens AG, SIRIUS 3RW30, 3RW30 S0 32A 480V 110-230V screw, Soft starter S0, 32 A, 15 kW/400 V, 40 degrees, 480-200 V AC, 110-230 , IP20
SIRIUS soft starter S0 32 A, 15 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals for standard applications for the soft starting of three-phase asynchronous motors Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA). The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all
| Beschermingsgraad (IP) | IP20 |
| Met display | Nee |
| Aanloopklasse | Overig |
| Nom. bedrijfsstroom Ie bij 40 °C | 32 A |
| Nom. vermogen draaistroommotor, standaardschakeling, bij 230 V | 7,5 kW |
| Nom. vermogen draaistroommotor, standaardschakeling, bij 400 V | 15 kW |
| Geïntegreerde overbelastingsbeveiliging motor | Nee |
| Interne by-pass schakelaar | Ja |
| Torque control | Nee |
| Model | SIRIUS 3RW30 |
