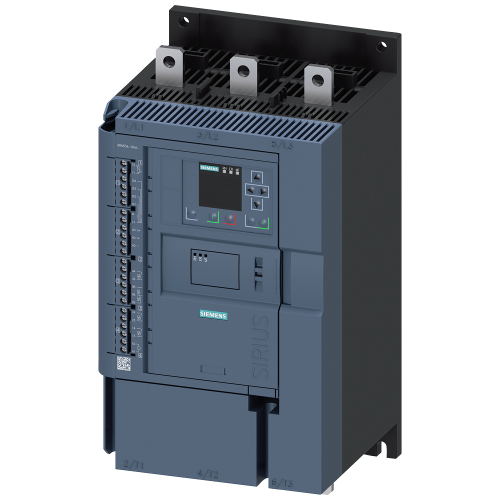

SIEMENS soft starter 200-690v 315a 24vac/dc 3RW55456HA06

Artikelnummer 11004651

Artikelnummer: 11004651
Artikelnummer fabrikant: 3RW55456HA06
EAN Code: 4047621041582

Siemens AG, SIRIUS 3RW55, 3RW55 690V 315A 24V screw, SIRIUS soft starter 200-690 V 315 A, 24 V AC/DC screw terminals, IP00, Instelbaar

SIRIUS soft starter 200-690 V 315 A, 24 V AC/DC Screw terminals SIRIUS 3RW55 soft starter for demanding safety applications for soft starting and stopping of three-phase asynchronous high performance motors. Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11004651
Artikelnummer fabrikant: 3RW55456HA06
EAN Code: 4047621041582

Siemens AG, 200.000 - 690.000 V, IP00, Instelbaar, 315 A, SIRIUS 3RW55

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP00
Nom. spanning Ue 200.000 - 690.000 V
Aanloopklasse Instelbaar
Nom. bedrijfsstroom Ie bij 40 °C 315 A
Geïntegreerde overbelastingsbeveiliging motor Ja
Torque control Ja
Model SIRIUS 3RW55
