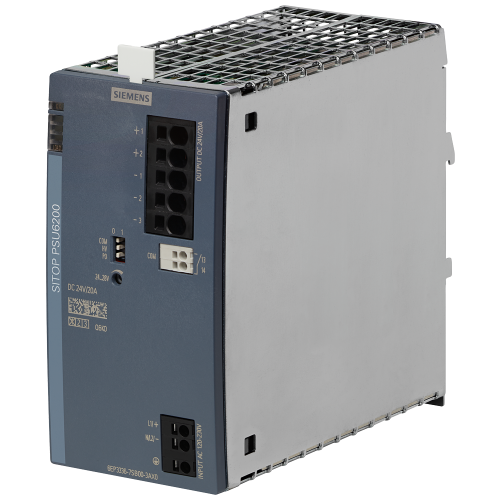

SIEMENS sitop voeding 230v - 24vdc 20a 6EP3336-7SB00-3AX0

Artikelnummer 11010928

Artikelnummer: 11010928
Artikelnummer fabrikant: 6EP33367SB003AX0
EAN Code: 4025515155218

Siemens AG, SITOP PSU6200, SITOP PSU6200/1AC/24VDC/20A, Power supply SITOP PSU6200, single-phase 24 V DC/20 A, Veerklemaansluiting, IP20

SITOP PSU6200 24 V/20 A stabilized power supply input: 120 - 240 V AC (110 - 240 V DC) output: 24 V DC/20 A with diagnostic interface The 1-phase SITOP PSU6200 are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The wide-range input allows a connection to almost any electricity supply network worldwide and ensures a high degree of safety even if there are large voltage fluctuations. The extra power supplies up to 150% of the rated current for a short time. In case of overload, the PSU6200 provides constant current up to a voltage of 15 V DC. The extremely high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP PSU6200 power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliabl

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11010928
Artikelnummer fabrikant: 6EP33367SB003AX0
EAN Code: 4025515155218

Siemens AG, 70 mm, 135 mm, 155 mm, 225 mm, 70 mm, 480 W, Veerklemaansluiting, IP20, 24.000 - 24.000 V, 240.000 - 240.000 V, 120.000 - 120.000 V, 110.000 - 240.000 V, 20 A, 24 V, 20 A, SITOP PSU6200, 4

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 70 mm
Gestabiliseerd Ja
Hoogte 135 mm
Diepte 155 mm
Uitvoering elektrische aansluiting Veerklemaansluiting
Breedte in module-eenheden 4
Modulaire uitvoering (voor railmontage) Ja
1e Secundaire spanning 24.000 - 24.000 V
Secundaire spanning instelbaar Ja
Max. uitgangsstroom 1 20 A
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Nom. voedingsspanning bij AC 50 Hz 240.000 - 240.000 V
Nom. voedingsspanning bij DC 110.000 - 240.000 V
Kortsluitvast Ja
Inbouwbreedte 70 mm
Vermogensafgifte 480 W
Uitgangsspanning geregeld Ja
Nom. uitgangsspanning 1 24 V
Nom. uitgangsstroom 1 20 A
Inbouwhoogte 225 mm
Wandmontage Nee
Directe montage mogelijk Nee
Nom. voedingsspanning bij AC 60 Hz 120.000 - 120.000 V
Model SITOP PSU6200
