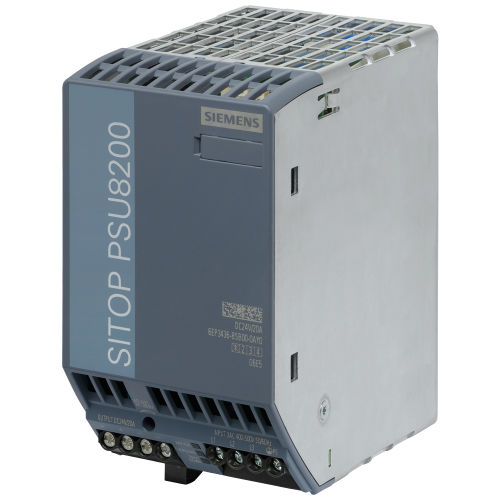

SIEMENS sitop psu8200, 3-phase 24v dc/20a 6EP34368SB000AY0

Artikelnummer 11009273

Artikelnummer: 11009273
Artikelnummer fabrikant: 6EP34368SB000AY0
EAN Code: 4025515154440

Siemens AG, SITOP PSU8200, SITOP PSU8200/3AC/24VDC/20A, Power supply SITOP PSU8200, 3-phase 24 V DC/20 A, Schroefaansluiting, IP20

SITOP PSU8200 24 V/20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A The 3-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The input range allows connection to almost any electrical power system worldwide and ensures a high degree of safety, even if there are large voltage fluctuations. The Power Boost delivers up to three times the rated current for a short time. In case of overload, you can choose between constant current or latching shutdown. The high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11009273
Artikelnummer fabrikant: 6EP3436-8SB00-0AY0
EAN Code: 4025515154440

Siemens AG, 70 mm, 125 mm, 125 mm, 225 mm, 70 mm, 480 W, Schroefaansluiting, IP20, 24.000 - 24.000 V, 400.000 - 400.000 V, 500.000 - 500.000 V, 20 A, 24 V, 20 A, SITOP PSU8200, 4

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 70 mm
Gestabiliseerd Ja
Hoogte 125 mm
Diepte 125 mm
Uitvoering elektrische aansluiting Schroefaansluiting
Breedte in module-eenheden 4
Modulaire uitvoering (voor railmontage) Ja
1e Secundaire spanning 24.000 - 24.000 V
Secundaire spanning instelbaar Ja
Max. uitgangsstroom 1 20 A
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Nom. voedingsspanning bij AC 50 Hz 400.000 - 400.000 V
Kortsluitvast Ja
Inbouwbreedte 70 mm
Vermogensafgifte 480 W
Uitgangsspanning geregeld Ja
Nom. uitgangsspanning 1 24 V
Nom. uitgangsstroom 1 20 A
Inbouwhoogte 225 mm
Wandmontage Nee
Directe montage mogelijk Nee
Nom. voedingsspanning bij AC 60 Hz 500.000 - 500.000 V
Model SITOP PSU8200
