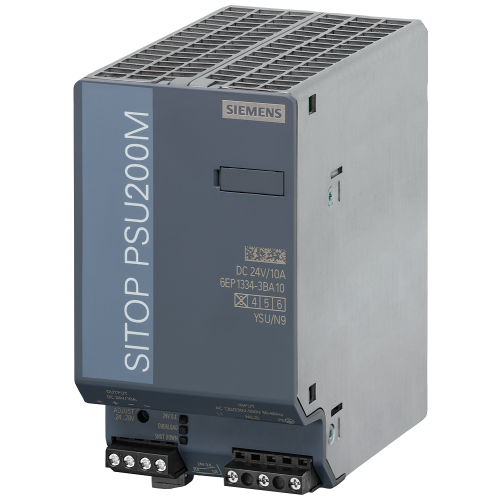

SIEMENS sitop psu200m 120/230v 24v 10a 6EP1334-3BA10

Artikelnummer 9877904

Artikelnummer: 9877904
Artikelnummer fabrikant: 6EP13343BA10
EAN Code: 4025515152880

Siemens AG, SITOP PSU200M, SITOP PSU200M/1-2AC/24VDC/10A, Power supply SITOP PSU200M, single and 2-phase 24 V DC/10 A, Schroefaansluiting, IP20

SITOP PSU200M 10 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/10 A The 1 and 2-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The ultra-wide-range input allows connection to 1-phase supply networks or directly between the line conductors of three-phase networks (2-phase) and ensures a high level of safety even in the event of large voltage fluctuations. The Power Boost delivers up to three times the rated current for a short time. In case of overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase the 24 V availability, the power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Sie

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 9877904
Artikelnummer fabrikant: 6EP13343BA10
EAN Code: 4025515152880

Siemens AG, 70 mm, 125 mm, 121 mm, 225 mm, 70 mm, 240 W, Schroefaansluiting, IP20, 24.000 - 24.000 V, 230.000 - 230.000 V, 120.000 - 120.000 V, 10 A, 24 V, 10 A, SITOP PSU200M

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 70 mm
Gestabiliseerd Ja
Hoogte 125 mm
Diepte 121 mm
Uitvoering elektrische aansluiting Schroefaansluiting
Modulaire uitvoering (voor railmontage) Ja
1e Secundaire spanning 24.000 - 24.000 V
Secundaire spanning instelbaar Ja
Max. uitgangsstroom 1 10 A
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Nom. voedingsspanning bij AC 50 Hz 230.000 - 230.000 V
Kortsluitvast Ja
Inbouwbreedte 70 mm
Vermogensafgifte 240 W
Uitgangsspanning geregeld Ja
Nom. uitgangsspanning 1 24 V
Nom. uitgangsstroom 1 10 A
Inbouwhoogte 225 mm
Wandmontage Nee
Directe montage mogelijk Nee
Nom. voedingsspanning bij AC 60 Hz 120.000 - 120.000 V
Model SITOP PSU200M
