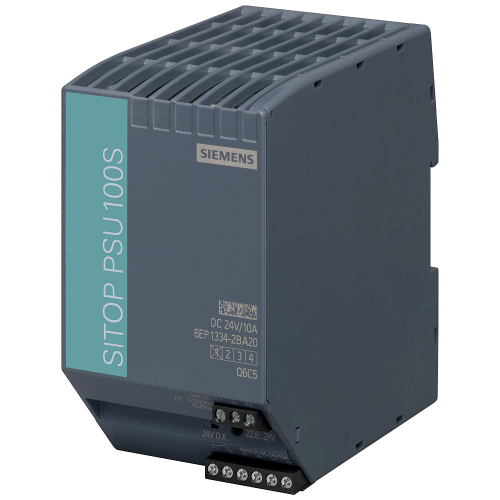

SIEMENS sitop psu100s 120/230v 24v 10a 6EP1334-2BA20

Artikelnummer 9877902

Artikelnummer: 9877902
Artikelnummer fabrikant: 6EP13342BA20
EAN Code: 4025515153498

Siemens AG, SITOP PSU100S, SITOP PSU100S/1AC/24VDC/10A, Power supply SITOP PSU100S, single-phase 24 V DC/10 A, Schroefaansluiting, IP20

SITOP PSU100S 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A The 1-phase SITOP smart power supplies are the universal and high-performance standard power supplies for mechanical and plant engineering. Despite their compact type of construction, they offer excellent overload behavior: Thanks to a power boost of 150%, loads with high power consumption can be connected without any problems and the permanent overload capability of 120% offers power reserves in case of expansions. The high efficiency ensures low energy consumption and low heat buildup in the control cabinet. To further increase the 24 V availability, the SITOP smart power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 9877902
Artikelnummer fabrikant: 6EP13342BA20
EAN Code: 4025515153498

Siemens AG, 70 mm, 125 mm, 120 mm, 225 mm, 70 mm, 288 W, Schroefaansluiting, IP20, 24.000 - 24.000 V, 230.000 - 230.000 V, 120.000 - 120.000 V, 12 A, 24 V, 10 A, SITOP PSU100S

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 70 mm
Gestabiliseerd Ja
Hoogte 125 mm
Diepte 120 mm
Uitvoering elektrische aansluiting Schroefaansluiting
Modulaire uitvoering (voor railmontage) Ja
1e Secundaire spanning 24.000 - 24.000 V
Secundaire spanning instelbaar Ja
Max. uitgangsstroom 1 12 A
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Nom. voedingsspanning bij AC 50 Hz 230.000 - 230.000 V
Kortsluitvast Ja
Inbouwbreedte 70 mm
Vermogensafgifte 288 W
Uitgangsspanning geregeld Ja
Nom. uitgangsspanning 1 24 V
Nom. uitgangsstroom 1 10 A
Inbouwhoogte 225 mm
Wandmontage Nee
Directe montage mogelijk Nee
Nom. voedingsspanning bij AC 60 Hz 120.000 - 120.000 V
Model SITOP PSU100S
