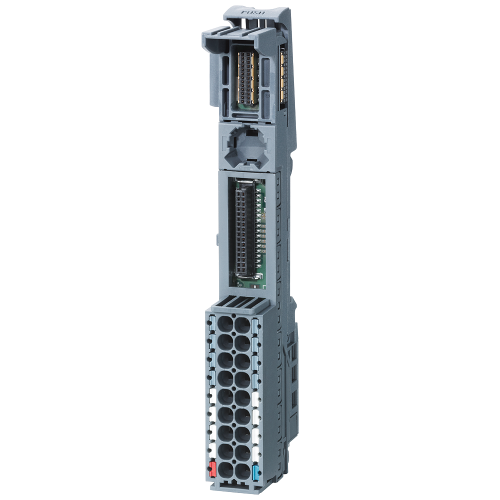

SIEMENS simatic et 200sp bu type a0 bu15 6ES71936BP000BA0

Artikelnummer 11007493

Artikelnummer: 11007493
Artikelnummer fabrikant: 6ES71936BP000BA0
EAN Code: 4025515080848

Siemens AG, SIMATIC BU type A0, BaseUnit Type A0, BU15-P16+A0+2B, SIMATIC ET 200SP BU type A0 BU15-P16+A0+2B, DC, ATEX gas-Ex-Beveiliging, Cat. 3G, DC

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2B, BU type A0, Push-in terminals, without AUX terminals, bridged to the left, WxH: 15x 117 mm SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11007493
Artikelnummer fabrikant: 6ES71936BP000BA0
EAN Code: 4025515080848

Siemens AG, 15 mm, 117 mm, 35 mm, DC, 1, 19.200 - 28.800 V, 19.200 - 28.800 V, DC, ATEX gas-Ex-Beveiliging, Cat. 3G, SIMATIC BU type A0

Eigenschappen
Algemeen
Breedte 15 mm
Type uitgangsspanning DC
Hoogte 117 mm
Diepte 35 mm
Geschikt voor veiligheidsfunctie Ja
Explosieveiligheidscategorie voor gas ATEX gas-Ex-Beveiliging, Cat. 3G
Type ingangsspanning DC
Draagrailmontage mogelijk Ja
Frontinbouw mogelijk Nee
Rackmontage mogelijk Nee
Wand-/directmontage mogelijk Nee
Systeemcomponenten Ja
Bijbehorend bedrijfsmiddel (Ex ia) Nee
Bijbehorend bedrijfsmiddel (Ex ib) Nee
Uitgangsspanning bij DC 19.200 - 28.800 V
Ingangsspanning bij DC 19.200 - 28.800 V
Aantal slots 1
Met inplug-modules, digitale I/O Ja
Met inplug-modules, analoge I/O Ja
Met inplug-modules, communicatiemodules Ja
Met inplug-modules, functie- en technologie-module Ja
Met inplug-modules, centrale modules Nee
Met inplug-modules, overige Nee
Met geïntegreerde stroomvoorziening Nee
Model SIMATIC BU type A0
