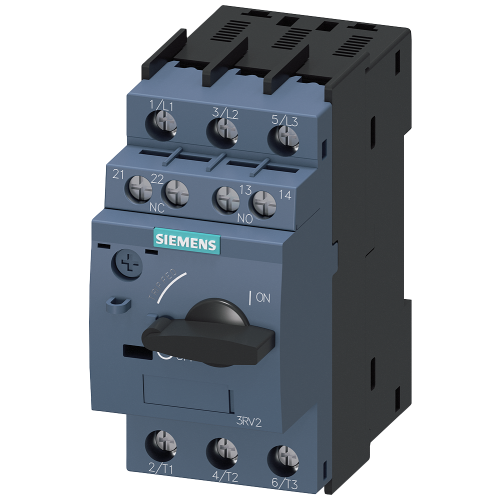

SIEMENS motorbeveiligingsschakelaar 7-10A 3RV2011-1JA15

Artikelnummer 11009973

Artikelnummer: 11009973
Artikelnummer fabrikant: 3RV20111JA15
EAN Code: 4011209841185

Siemens AG, SIRIUS 3RV2, CIRCUIT-BREAKER SCREW CONNECTION..., Circuit breaker, S00, motor protection, Class 10, A-release 7-10 A, sh, 9,25, IP20, Schroefaansluiting, Magnetisch, Inbouwapparaat vaste inbouw techniek

circuit breaker frame size S00 for motor protection, Class 10 thermal release 7...10 A short-circuit release 130 A screw terminal standard switching capacity with transverse auxiliary switch 1 NO+1 NC SIRIUS 3RV2 circuit breaker for motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for protective separation of the system from the network. Thanks to their low heat loss, these compact and climate-proof circuit breakers are optimized for use in load feeders, as well as for IE3/IE4 motors, of course. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type term

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11009973
Artikelnummer fabrikant: 3RV2011-1JA15
EAN Code: 4011209841185

Siemens AG, 45 mm, 97 mm, 97 mm, 4 kW, 10 A, 3, 690.000 - 690.000 V, 7.000 - 10.000 A, IP20, Schroefaansluiting, Magnetisch, 2,2 kW, 100 kA, Inbouwapparaat vaste inbouw techniek, 9,25, 130.000 - 130.000 A, SIRIUS 3RV2

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 45 mm
Aantal polen 3
Hoogte 97 mm
Diepte 97 mm
Uitvoering van het bedieningselement Overig
Bedrijfsspanning (meetspanning) 690.000 - 690.000 V
Nom. continustroom Iu 10 A
Nom. vermogen bij AC-3, 400 V 4 kW
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Apparaatbouwvorm Inbouwapparaat vaste inbouw techniek
Met geïntegreerd hulpcontact Ja
Met geïntegreerde onderspanningsspoel Nee
Instelbereik overbelastingsbeveiliging 7.000 - 10.000 A
Uitschakeltechniek Magnetisch
Nom. vermogen bij AC-3, 230 V 2,2 kW
Nom. afschakelvermogen Icu bij 400 V, AC 100 kA
Instelbereik onvertraagde kortsluitbeveiliging 130.000 - 130.000 A
Faseuitvalgevoelig Ja
Met thermische beveiliging Ja
Verliesvermogen 9,25
Model SIRIUS 3RV2
