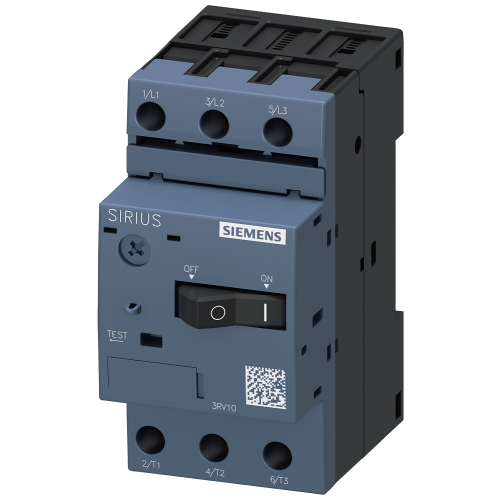

Siemens motorbeveiligingsschakelaar 2.8a-4a 3RV10111EA10

Artikelnummer 11010409

Artikelnummer: 11010409
Artikelnummer fabrikant: 3RV10111EA10
EAN Code: 4011209263567

Siemens AG, SIRIUS 3RV1, CIRCUIT-BREAKER, 2.8...4 A,, Circuit breaker, S00, motor protection, Class 10, A-release 2.8-4 A, s, 7,25, IP20, Schroefaansluiting, Magnetisch, Inbouwapparaat vaste inbouw techniek

Circuit breaker size S00 for motor protection, CLASS 10 A-release 2.8...4 A N release 52 A Screw terminal Standard switching capacity SIRIUS 3RV1 circuit breaker for motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for protective separation of the system from the network. Thanks to their low heat loss, these compact and climate-proof circuit breakers are optimized for use in load feeders, as well as for IE3/IE4 motors, of course. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw terminals and optionally with an integrated auxiliary switch. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The use of different energy i

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11010409
Artikelnummer fabrikant: 3RV10111EA10
EAN Code: 4011209263567

Siemens AG, 45 mm, 90 mm, 75 mm, 1,5 kW, 4 A, 3, 690.000 - 690.000 V, 2.800 - 4.000 A, 7,25, IP20, Schroefaansluiting, Magnetisch, 0,75 kW, 100 kA, 52.000 - 52.000 A, Inbouwapparaat vaste inbouw techniek, SIRIUS 3RV1

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 45 mm
Aantal polen 3
Hoogte 90 mm
Diepte 75 mm
Uitvoering van het bedieningselement Overig
Bedrijfsspanning (meetspanning) 690.000 - 690.000 V
Nom. continustroom Iu 4 A
Nom. vermogen bij AC-3, 400 V 1,5 kW
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Apparaatbouwvorm Inbouwapparaat vaste inbouw techniek
Met geïntegreerd hulpcontact Nee
Met geïntegreerde onderspanningsspoel Nee
Instelbereik overbelastingsbeveiliging 2.800 - 4.000 A
Uitschakeltechniek Magnetisch
Nom. vermogen bij AC-3, 230 V 0,75 kW
Nom. afschakelvermogen Icu bij 400 V, AC 100 kA
Instelbereik onvertraagde kortsluitbeveiliging 52.000 - 52.000 A
Faseuitvalgevoelig Ja
Met thermische beveiliging Ja
Verliesvermogen 7,25
Model SIRIUS 3RV1
