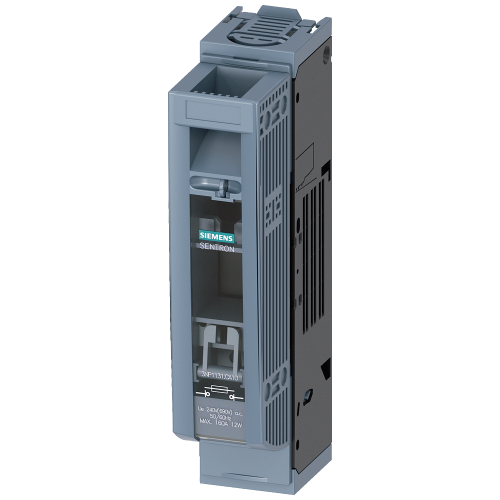

SIEMENS mespatroonhouder 160a 3NP11311CA10

Artikelnummer 11004329

Artikelnummer: 11004329
Artikelnummer fabrikant: 3NP11311CA10
EAN Code: 4001869564388

Siemens AG, SENTRON 3NP1, Fuse switch disconnector 3NP1, SENTRON, 3NP1 fuse switch disconnector, 1-pole, NH00, 160 A, IP40, NH000, NH00, Railaansluiting, Dekselgreep

SENTRON, fuse switch disconnector 3NP1, 1-pole, NH00, 160 A, for assembly and installation on mounting plate, flat terminal, cover level 45 mm 3NP fuse switch disconnector up to 630 A with enhanced protection for personnel and plants and user-friendly connection system. The fuse switch disconnectors have an electronic fuse monitoring function that enables optional line monitoring. Flexible switching times of the auxiliary switch are possible. The reach-round and touch protection incorporated as standard in the new SENTRON 3NP1 series prevents users from touching current conducting parts when mounting on a busbar system, even when accessing at therear. 3NP1 fuse switch disconnectors are available in 1-, 3- and 4-pole versions for currents from 125 A to 630 A up to degree of protection IP40. Optimized technology for your safety - only from Siemens.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11004329
Artikelnummer fabrikant: 3NP11311CA10
EAN Code: 4001869564388

Siemens AG, 160 A, 1, 80 kA, IP40, NH000, NH00, Railaansluiting, Dekselgreep, 240 V, SENTRON 3NP1

Eigenschappen
Algemeen
Aantal polen 1
Uitvoering van het bedieningselement Dekselgreep
Beschermingsgraad frontzijde (IP) IP40
Nom. continustroom Iu 160 A
Voorwaardelijke nom. kortsluitstroom Iq 80 kA
Aansluitwijze hoofdstroomcircuit Railaansluiting
Frontmontage Nee
Motoraandrijving geïntegreerd Nee
Uitvoering als noodstopinrichting Nee
Uitvoering als hoofdschakelaar Nee
Uitvoering als veiligheidsschakelaar Ja
Geschikt voor bodemmontage Nee
Max. nom. bedrijfsspanning Ue bij AC 240 V
Motoraandrijving optioneel Nee
Geschikt voor frontbevestiging Nee
Vloermontage Nee
Met zekeringsbewaking Nee
Geschikt voor zekeringen NH000, NH00
Geschikt voor stroomrailopbouw Nee
Uitgerust met connectoren Nee
Model SENTRON 3NP1
