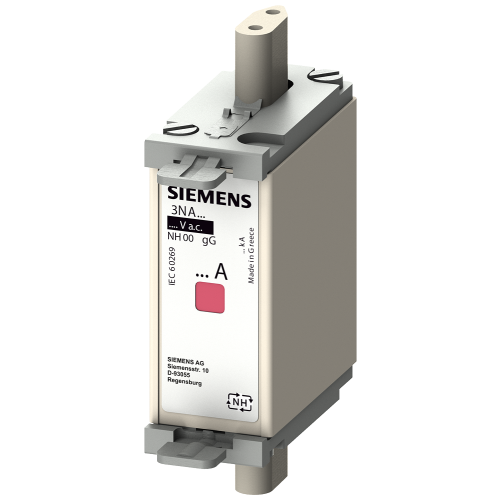

SIEMENS mespatroon nh00 100a GL/GG 3NA6830

Artikelnummer 6292245

Artikelnummer: 6292245
Artikelnummer fabrikant: 3NA6830
EAN Code: 4001869071299

Siemens AG, SENTRON 3NA6, LV HRC fuse NH000 100A gG 500Vac..., LV HRC fuse link, NH000, In: 100 A, gG, Un AC: 500 V, Un DC: 250 V, AC/DC, gG (kabel- en apparaatbeveiliging), Combikenmelder, NH000

LV HRC fuse element, NH000, In: 100 A, gG, Un AC: 500 V, Un DC: 250 V, Combined indicator, Insulated grip lugs SENTRON 3NA6 low-voltage HRC fuse link for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. Combination alarms signal the tripping of a fuse by a clear color change from red to white. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.

Aantal in de verpakking: 3 pc

Omschrijving

Artikelnummer: 6292245
Artikelnummer fabrikant: 3NA6830
EAN Code: 4001869071299

Siemens AG, AC/DC, 100 A, 500 V, 120 kA, gG (kabel- en apparaatbeveiliging), Combikenmelder, 500, 250, 7, NH000, 120, 25, SENTRON 3NA6

Eigenschappen
Algemeen
Spanningstype AC/DC
Nom. (meet)stroom 100 A
Nom. (meet)spanning 500 V
Bedrijfsklasse gG (kabel- en apparaatbeveiliging)
Nom. afschakelvermogen 120 kA
Uitvoering kenmelder Combikenmelder
Nom. (meet)spanning AC 500
Nom. (meet)spanning DC 250
Vermogensverlies bij nom. stroom 7
Geïsoleerde metalen trekoren (IMGL) Ja
Zekeringmaat volgens IEC 60269 NH000
Model SENTRON 3NA6
Nom. schakelvermogen AC 120
Nom. schakelvermogen DC 25
