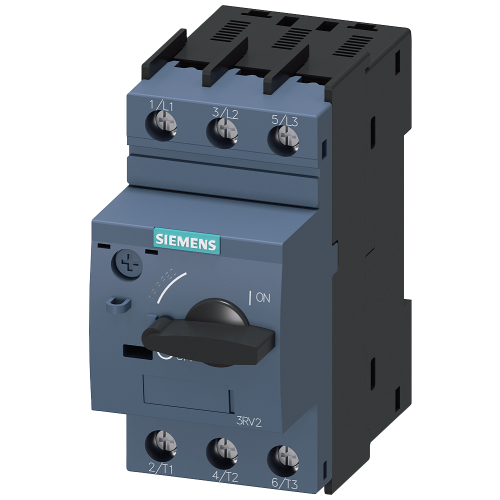

SIEMENS mbs 7-10A 3RV2011-1JA10
Artikelnummer: 11001026
Artikelnummer fabrikant: 3RV20111JA10
EAN Code: 4011209712492
Siemens AG, SIRIUS 3RV2, CIRCUIT-BREAKER SCREW CONNECTION..., Circuit breaker, S00, motor protection, Class 10, A-release 7-10 A, sh, 9,25, IP20, Schroefaansluiting, Magnetisch, Inbouwapparaat vaste inbouw techniek
Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A screw terminal Standard switching capacity SIRIUS 3RV2 circuit breaker for motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for protective separation of the system from the network. Thanks to their low heat loss, these compact and climate-proof circuit breakers are optimized for use in load feeders, as well as for IE3/IE4 motors, of course. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, an
| Beschermingsgraad (IP) | IP20 |
| Breedte | 45 mm |
| Aantal polen | 3 |
| Hoogte | 97 mm |
| Diepte | 97 mm |
| Uitvoering van het bedieningselement | Overig |
| Bedrijfsspanning (meetspanning) | 690.000 - 690.000 V |
| Nom. continustroom Iu | 10 A |
| Nom. vermogen bij AC-3, 400 V | 4 kW |
| Aansluitwijze hoofdstroomcircuit | Schroefaansluiting |
| Apparaatbouwvorm | Inbouwapparaat vaste inbouw techniek |
| Met geïntegreerd hulpcontact | Nee |
| Met geïntegreerde onderspanningsspoel | Nee |
| Instelbereik overbelastingsbeveiliging | 7.000 - 10.000 A |
| Uitschakeltechniek | Magnetisch |
| Nom. vermogen bij AC-3, 230 V | 2,2 kW |
| Nom. afschakelvermogen Icu bij 400 V, AC | 100 kA |
| Instelbereik onvertraagde kortsluitbeveiliging | 130.000 - 130.000 A |
| Faseuitvalgevoelig | Ja |
| Met thermische beveiliging | Ja |
| Verliesvermogen | 9,25 |
| Model | SIRIUS 3RV2 |
