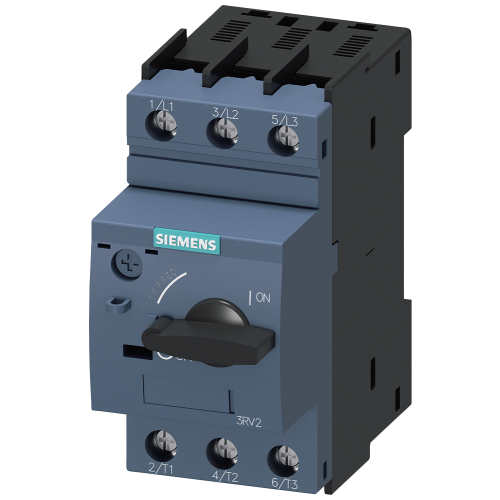

SIEMENS mbs 11-16A 3RV2021-4aa10

Artikelnummer 11001025

Artikelnummer: 11001025
Artikelnummer fabrikant: 3RV20214AA10
EAN Code: 4011209712515

Siemens AG, SIRIUS 3RV2, CIRCUIT-BREAKER SCREW CONNECTION..., Circuit breaker, S0, motor protection, Class 10, thermal overload rele, 9,25, IP20, Schroefaansluiting, Magnetisch, Inbouwapparaat vaste inbouw techniek

Circuit breaker size S0 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A screw terminal Standard switching capacity SIRIUS 3RV2 circuit breaker for motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for protective separation of the system from the network. Thanks to their low heat loss, these compact and climate-proof circuit breakers are optimized for use in load feeders, as well as for IE3/IE4 motors, of course. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, an

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11001025
Artikelnummer fabrikant: 3RV20214AA10
EAN Code: 4011209712515

Siemens AG, 45 mm, 97 mm, 97 mm, 7,5 kW, 16 A, 3, 690.000 - 690.000 V, 10.000 - 16.000 A, IP20, Schroefaansluiting, Magnetisch, 4 kW, 55 kA, Inbouwapparaat vaste inbouw techniek, 9,25, 208.000 - 208.000 A, SIRIUS 3RV2

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 45 mm
Aantal polen 3
Hoogte 97 mm
Diepte 97 mm
Uitvoering van het bedieningselement Overig
Bedrijfsspanning (meetspanning) 690.000 - 690.000 V
Nom. continustroom Iu 16 A
Nom. vermogen bij AC-3, 400 V 7,5 kW
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Apparaatbouwvorm Inbouwapparaat vaste inbouw techniek
Met geïntegreerd hulpcontact Nee
Met geïntegreerde onderspanningsspoel Nee
Instelbereik overbelastingsbeveiliging 10.000 - 16.000 A
Uitschakeltechniek Magnetisch
Nom. vermogen bij AC-3, 230 V 4 kW
Nom. afschakelvermogen Icu bij 400 V, AC 55 kA
Instelbereik onvertraagde kortsluitbeveiliging 208.000 - 208.000 A
Faseuitvalgevoelig Ja
Met thermische beveiliging Ja
Verliesvermogen 9,25
Model SIRIUS 3RV2
