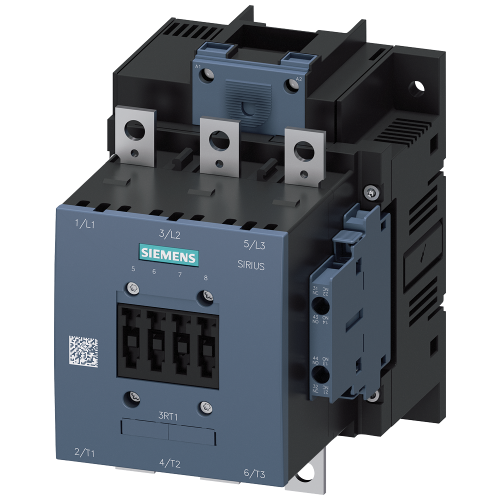

SIEMENS magneetschakelaar 75kw 400v 3RT10556AP36

Artikelnummer 11001918

Artikelnummer: 11001918
Artikelnummer fabrikant: 3RT10556AP36
EAN Code: 4011209507333

Siemens AG, SIRIUS 3RT1, CONTACTOR, 75KW/400V/AC-3, Contactor, AC-3e, 150 A/75 kW/400 V, 3-pole, 220-240 V AC/DC, 2 NO+2 N, Railaansluiting, 1000.000 - 1000.000, 1000.000 - 1000.000, AC/DC

power contactor, AC-3e/AC-3 150 A, 75 kW / 400 V AC (50-60 Hz) / DC Uc: 220-240 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: busbar control and auxiliary circuit: screw terminal SIRIUS 3RT1 power contactor for switching motors. The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. The 3RT1 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range. They can be operated with AC or DC, and some versions have a wide voltage range and a PLC control input. The de

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11001918
Artikelnummer fabrikant: 3RT10556AP36
EAN Code: 4011209507333

Siemens AG, SIRIUS 3RT1, CONTACTOR, 75KW/400V/AC-3, Contactor, AC-3e, 150 A/75 kW/400 V, 3-pole, 220-240 V AC/DC, 2 NO+2 N, Railaansluiting, 1000.000 - 1000.000, 1000.000 - 1000.000, AC/DC

power contactor, AC-3e/AC-3 150 A, 75 kW / 400 V AC (50-60 Hz) / DC Uc: 220-240 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: busbar control and auxiliary circuit: screw terminal SIRIUS 3RT1 power contactor for switching motors. The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. The 3RT1 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range. They can be operated with AC or DC, and some versions have a wide voltage range and a PLC control input. The de

Eigenschappen
Algemeen
Breedte 120
Hoogte 172
Diepte 170
Bedrijfsspanning bij AC 60 Hz 1000.000 - 1000.000
Bedrijfsspanning bij AC 50 Hz 1000.000 - 1000.000
Type stuurspanning AC/DC
Nom. stuurspanning Us bij AC 50HZ 220.000 - 240.000 V
Nom. stuurspanning Us bij AC 60HZ 220.000 - 240.000 V
Nom. stuurspanning Us bij DC 220.000 - 240.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 75 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 2
Aantal hulpcontacten als verbreekcontact 2
Nom. bedrijfsstroom Ie bij AC-3, 400 V 150 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 185 A
Aansluitwijze hoofdstroomcircuit Railaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 132 A
Nom. vermogen bij AC-4, 400 V 75 kW
Nom. vermogen NEMA 91,937 kW
Model SIRIUS 3RT1
