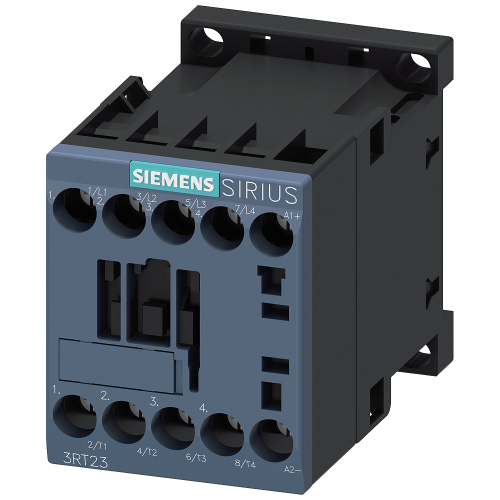

SIEMENS magneetschakelaar 5.5kw 4p 24vdc 3RT2317-1BB40

Artikelnummer 11004601

Artikelnummer: 11004601
Artikelnummer fabrikant: 3RT23171BB40
EAN Code: 4011209785175

Siemens AG, SIRIUS 3RT23, 4NO CONTACTOR, AC1: 22A, 24V DC, Contactor, AC-1, 22 A/400 V/40 °C, S00, 4-pole, 24 V DC, Schroefaansluiting, 690.000 - 690.000, DC

contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 24 V DC, screw terminal, size: S00 SIRIUS 3RT23 contactor for switching weak or non-inductive loads The 3RT23 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your configuration. The front-panel terminals simplify the wiring. 3RT23 contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA). They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, ma

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11004601
Artikelnummer fabrikant: 3RT23171BB40
EAN Code: 4011209785175

Siemens AG, 5,5 kW, 4, 12 A, 22 A, Schroefaansluiting, DC, 8,5 A, 4 kW, 45, 58, 73, 690.000 - 690.000, SIRIUS 3RT23, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 45
Hoogte 58
Diepte 73
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 5,5 kW
Aantal hoofdcontacten als maakcontact 4
Nom. bedrijfsstroom Ie bij AC-3, 400 V 12 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 22 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 8,5 A
Nom. vermogen bij AC-4, 400 V 4 kW
Model SIRIUS 3RT23
