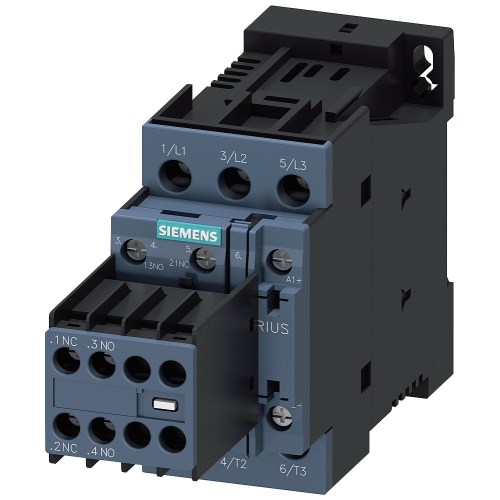

SIEMENS magneetschakelaar 5,5kw 400v 2no+2nc 3RT2024-1BB44

Artikelnummer 6292225

Artikelnummer: 6292225
Artikelnummer fabrikant: 3RT20241BB44
EAN Code: 4011209837058

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:5,5KW 2NO+2NC DC24V, Contactor, AC-3e, 12 A/5.5 kW/400 V, 3-pole, 24 V DC, 2 NO+2 NC, screw, Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, DC

power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 2 NO + 2 NC, screw terminal, size: S0, removable auxiliary switch SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, a

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292225
Artikelnummer fabrikant: 3RT20241BB44
EAN Code: 4011209837058

Siemens AG, 5,5 kW, 3, 2, 2, 12 A, 40 A, Schroefaansluiting, DC, 12,5 A, 5,884 kW, 45, 85, 151, 690.000 - 690.000, 690.000 - 690.000, SIRIUS 3RT2, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 45
Hoogte 85
Diepte 151
Bedrijfsspanning bij AC 60 Hz 690.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 5,5 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 2
Aantal hulpcontacten als verbreekcontact 2
Nom. bedrijfsstroom Ie bij AC-3, 400 V 12 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 40 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 12,5 A
Nom. vermogen NEMA 5,884 kW
Model SIRIUS 3RT2
