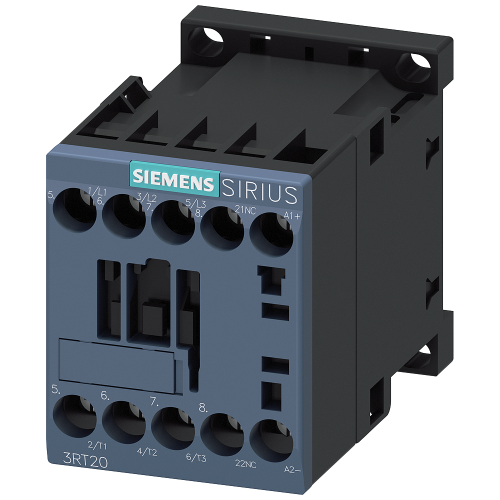

SIEMENS magneetschakelaar 5,5kw 24vdc 3RT20171BB42
Artikelnummer: 11001865
Artikelnummer fabrikant: 3RT20171BB42
EAN Code: 4011209785007
Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:5,5KW 1NC DC24V, Contactor, AC-3e, 12 A/5.5 kW/400 V, 3-pole, 24 V DC, 1 NC, screw term, Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, DC
power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NC, screw terminal, size: S00 SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available
| Breedte | 45 |
| Hoogte | 58 |
| Diepte | 73 |
| Bedrijfsspanning bij AC 60 Hz | 690.000 - 690.000 |
| Bedrijfsspanning bij AC 50 Hz | 690.000 - 690.000 |
| Type stuurspanning | DC |
| Nom. stuurspanning Us bij DC | 24.000 - 24.000 V |
| Modulaire uitvoering (voor railmontage) | Ja |
| Nom. vermogen bij AC-3, 400 V | 5,5 kW |
| Aantal hoofdcontacten als maakcontact | 3 |
| Aantal hoofdcontacten als verbreekcontact | 0 |
| Aantal hulpcontacten als maakcontact | 0 |
| Aantal hulpcontacten als verbreekcontact | 1 |
| Nom. bedrijfsstroom Ie bij AC-3, 400 V | 12 A |
| Nom. bedrijfsstroom Ie bij AC-1, 400 V | 22 A |
| Aansluitwijze hoofdstroomcircuit | Schroefaansluiting |
| Nom. bedrijfsstroom Ie bij AC-4, 400 V | 8,5 A |
| Nom. vermogen NEMA | 5,884 kW |
| Model | SIRIUS 3RT2 |
