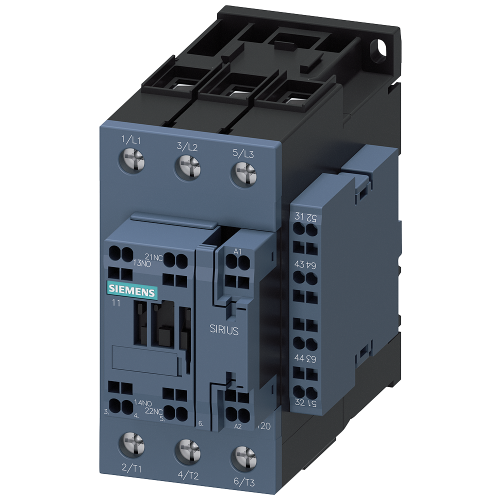

SIEMENS magneetschakelaar 41a 3p 18,5kw 24vdc 3RT20353AP06

Artikelnummer 11010829

Artikelnummer: 11010829
Artikelnummer fabrikant: 3RT20353AP06
EAN Code: 4011209941915

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:18.5KW 2NO+2NC 230..., Contactor, AC-3e, 40 A/18.5 kW/400 V, 3-pole, 230 V AC/50 Hz, 2 NO+2 N, Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, AC

power contactor, AC-3e/AC-3, 41 A, 18.5 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 2 NO + 2 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S2, lateral auxiliary switch SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide p

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11010829
Artikelnummer fabrikant: 3RT2035-3AP06
EAN Code: 4011209941915

Siemens AG, 75, 114, 130, 18,5 kW, 3, 2, 2, 41 A, 60 A, Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, AC, 35 A, 22,065 kW, SIRIUS 3RT2, 230.000 - 230.000 V

Eigenschappen
Algemeen
Breedte 75
Hoogte 114
Diepte 130
Bedrijfsspanning bij AC 60 Hz 690.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning AC
Nom. stuurspanning Us bij AC 50HZ 230.000 - 230.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 18,5 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 2
Aantal hulpcontacten als verbreekcontact 2
Nom. bedrijfsstroom Ie bij AC-3, 400 V 41 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 60 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 35 A
Nom. vermogen NEMA 22,065 kW
Model SIRIUS 3RT2
