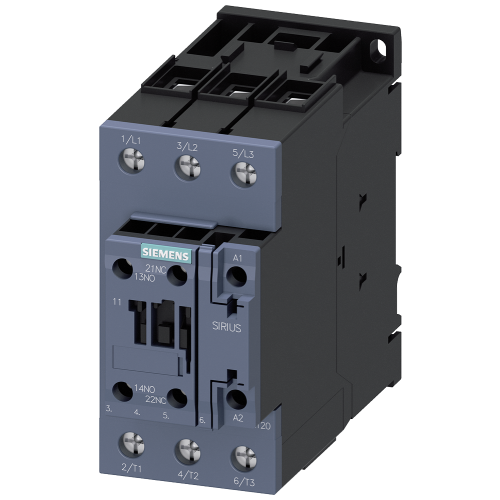

SIEMENS magneetschakelaar 3p 37kw 24vdc 3RT20371KB40

Artikelnummer 11006215

Artikelnummer: 11006215
Artikelnummer fabrikant: 3RT20371KB40
EAN Code: 4047621010038

Siemens AG, SIRIUS 3RT2, COUPLING CONT.,AC3:30KW 1NO+1NC ..., Coupling contactor, AC-3e, 65 A/30 kW/400 V, 3-pole, 24 V DC, 1 NO+1 N, Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, DC

power contactor, AC-3e/AC-3, 65 A, 30 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S2, suitable for PLC outputs SIRIUS 3RT2 power contactor for switching motors and auxiliary and control circuits, specially designed for direct connection to electronic controllers. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. In addition to screw terminals, all the devices are also available with spring-type terminals for fas

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11006215
Artikelnummer fabrikant: 3RT20371KB40
EAN Code: 4047621010038

Siemens AG, 30 kW, 3, 1, 1, 65 A, 80 A, Schroefaansluiting, DC, 55 A, 36,775 kW, 55, 114, 130, 690.000 - 690.000, 690.000 - 690.000, SIRIUS 3RT2, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 55
Hoogte 114
Diepte 130
Bedrijfsspanning bij AC 60 Hz 690.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 30 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 1
Nom. bedrijfsstroom Ie bij AC-3, 400 V 65 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 80 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 55 A
Nom. vermogen NEMA 36,775 kW
Model SIRIUS 3RT2
