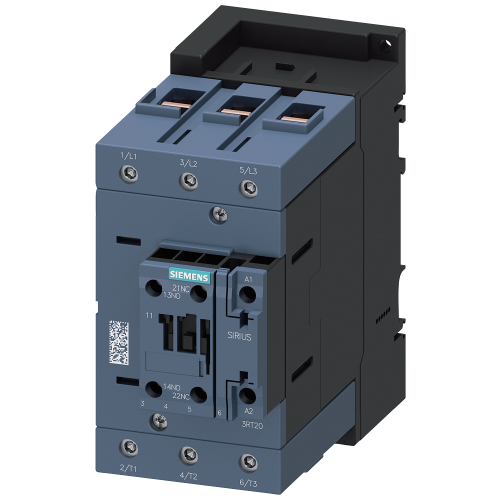

SIEMENS magneetschakelaar 37kw 3RT2045-1AK60

Artikelnummer 6292244

Artikelnummer: 6292244
Artikelnummer fabrikant: 3RT20451AK60
EAN Code: 4047621023670

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:37KW,110VAC 50HZ/1..., Contactor, AC-3e, 80 A/37 kW/400 V, 3-pole, 110 V AC/50 Hz, 120 V AC/6, Schroefaansluiting, 690.000 - 690.000, 1000.000 - 1000.000, AC

power contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 110 V AC, 50 Hz / 120 V, 60 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S3 SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292244
Artikelnummer fabrikant: 3RT20451AK60
EAN Code: 4047621023670

Siemens AG, 37 kW, 3, 1, 1, 80 A, 125 A, Schroefaansluiting, AC, 66 A, 44,13 kW, 70, 140, 152, 690.000 - 690.000, 1000.000 - 1000.000, SIRIUS 3RT2, 110.000 - 110.000 V, 120.000 - 120.000 V

Eigenschappen
Algemeen
Breedte 70
Hoogte 140
Diepte 152
Bedrijfsspanning bij AC 60 Hz 1000.000 - 1000.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning AC
Nom. stuurspanning Us bij AC 50HZ 110.000 - 110.000 V
Nom. stuurspanning Us bij AC 60HZ 120.000 - 120.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 37 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 1
Nom. bedrijfsstroom Ie bij AC-3, 400 V 80 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 125 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 66 A
Nom. vermogen NEMA 44,13 kW
Model SIRIUS 3RT2
