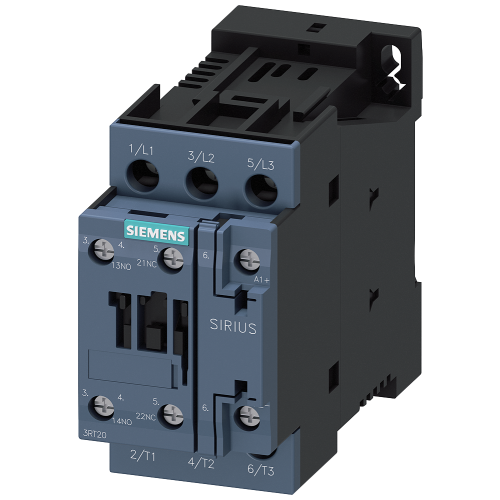

SIEMENS magneetschakelaar 15kw 3p 3RT2027-1BB40

Artikelnummer 11006228

Artikelnummer: 11006228
Artikelnummer fabrikant: 3RT20271BB40
EAN Code: 4011209790087

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:15KW 1NO+1NC DC24V, Contactor, AC-3e, 32 A/15 kW/400 V, 3-pole, 24 V DC, 1 NO+1 NC, screw , Schroefaansluiting, 690.000 - 690.000, 690.000 - 690.000, DC

power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0 SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also avail

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11006228
Artikelnummer fabrikant: 3RT20271BB40
EAN Code: 4011209790087

Siemens AG, 15 kW, 3, 1, 1, 32 A, 50 A, Schroefaansluiting, DC, 22 A, 14,71 kW, 45, 85, 107, 690.000 - 690.000, 690.000 - 690.000, SIRIUS 3RT2, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 45
Hoogte 85
Diepte 107
Bedrijfsspanning bij AC 60 Hz 690.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 15 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 1
Nom. bedrijfsstroom Ie bij AC-3, 400 V 32 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 50 A
Aansluitwijze hoofdstroomcircuit Schroefaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 22 A
Nom. vermogen NEMA 14,71 kW
Model SIRIUS 3RT2
