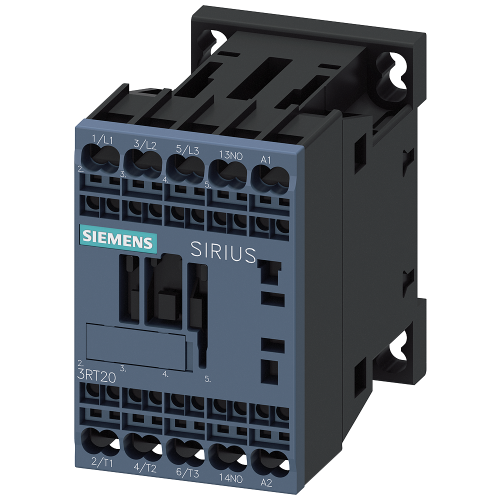

SIEMENS magneetschak. 3rt2015-2ab01

Artikelnummer 9877921

Artikelnummer: 9877921
Artikelnummer fabrikant: 3RT20152AB01
EAN Code: 4011209785205

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:3KW 1NO AC24V 50/60HZ, Contactor, AC-3e, 7 A/3 kW/400 V, 3-pole, 24 V AC, 50/60 Hz, 1 NO, spr, Veerklemaansluiting, 690.000 - 690.000, 690.000 - 690.000, AC

power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V AC, 50/60 Hz, auxiliary contacts: 1 NO, spring-loaded terminal, size: S00 SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 9877921
Artikelnummer fabrikant: 3RT20152AB01
EAN Code: 4011209785205

Siemens AG, SIRIUS 3RT2, CONTACTOR,AC3:3KW 1NO AC24V 50/60HZ, Contactor, AC-3e, 7 A/3 kW/400 V, 3-pole, 24 V AC, 50/60 Hz, 1 NO, spr, Veerklemaansluiting, 690.000 - 690.000, 690.000 - 690.000, AC

power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V AC, 50/60 Hz, auxiliary contacts: 1 NO, spring-loaded terminal, size: S00 SIRIUS 3RT2 power contactor for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are

Eigenschappen
Algemeen
Breedte 45
Hoogte 70
Diepte 73
Bedrijfsspanning bij AC 60 Hz 690.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 690.000 - 690.000
Type stuurspanning AC
Nom. stuurspanning Us bij AC 50HZ 24.000 - 24.000 V
Nom. stuurspanning Us bij AC 60HZ 24.000 - 24.000 V
Modulaire uitvoering (voor railmontage) Ja
Nom. vermogen bij AC-3, 400 V 3 kW
Aantal hoofdcontacten als maakcontact 3
Aantal hoofdcontacten als verbreekcontact 0
Aantal hulpcontacten als maakcontact 1
Aantal hulpcontacten als verbreekcontact 0
Nom. bedrijfsstroom Ie bij AC-3, 400 V 7 A
Nom. bedrijfsstroom Ie bij AC-1, 400 V 18 A
Aansluitwijze hoofdstroomcircuit Veerklemaansluiting
Nom. bedrijfsstroom Ie bij AC-4, 400 V 6,5 A
Nom. vermogen bij AC-4, 400 V 3 kW
Nom. vermogen NEMA 2,206 kW
Model SIRIUS 3RT2
