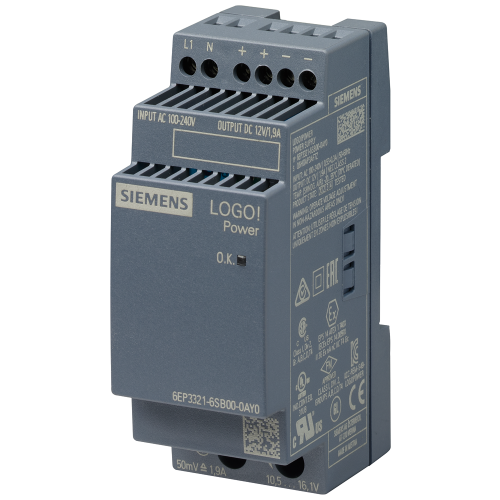

SIEMENS logo voeding 12v 1,9a 6EP3321-6SB00-0AY0

Artikelnummer 11005619

Artikelnummer: 11005619
Artikelnummer fabrikant: 6EP33216SB000AY0
EAN Code: 4025515154808

Siemens AG, LOGO!Power LOGO!Power, LOGO!Power/1AC/12VDC/1.9A, Power supply LOGO!Power, single-phase 12 V DC/1.9 A, Schroefaansluiting, IP20

LOGO!POWER 12 V / 1.9 A stabilized power supply input: 100-240 V AC output: 12 V DC/ 1.9 A The new miniature LOGO!Power power supply units in the same design as the LOGO!8 logic modules offer great performance in the smallest space. The improved efficiency across the entire load range and the low power loss in no-load operation ensure efficient operation. The wide-range input for 1-phase networks and for direct voltage networks as well as the power reserve for switching on capacitive loads meet the requirements of numerous applications. The large temperature range and comprehensive certifications make the units suitable for universal use. These reliable power supplies with their flat, stepped profile can be used extremely flexibly, for example, in distribution boards. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11005619
Artikelnummer fabrikant: 6EP33216SB000AY0
EAN Code: 4025515154808

Siemens AG, 36 mm, 90 mm, 53 mm, 130 mm, 36 mm, 22,8 W, Schroefaansluiting, IP20, 12.000 - 12.000 V, 240.000 - 240.000 V, 100.000 - 100.000 V, 1,9 A, 12 V, 1,9 A, LOGO!Power LOGO!Power, 2

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Breedte 36 mm
Gestabiliseerd Ja
Hoogte 90 mm
Diepte 53 mm
Uitvoering elektrische aansluiting Schroefaansluiting
Breedte in module-eenheden 2
Modulaire uitvoering (voor railmontage) Ja
1e Secundaire spanning 12.000 - 12.000 V
Secundaire spanning instelbaar Ja
Max. uitgangsstroom 1 1,9 A
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Ja
Nom. voedingsspanning bij AC 50 Hz 240.000 - 240.000 V
Kortsluitvast Ja
Inbouwbreedte 36 mm
Vermogensafgifte 22,8 W
Uitgangsspanning geregeld Ja
Nom. uitgangsspanning 1 12 V
Nom. uitgangsstroom 1 1,9 A
Inbouwhoogte 130 mm
Wandmontage Ja
Directe montage mogelijk Ja
Nom. voedingsspanning bij AC 60 Hz 100.000 - 100.000 V
Model LOGO!Power LOGO!Power
