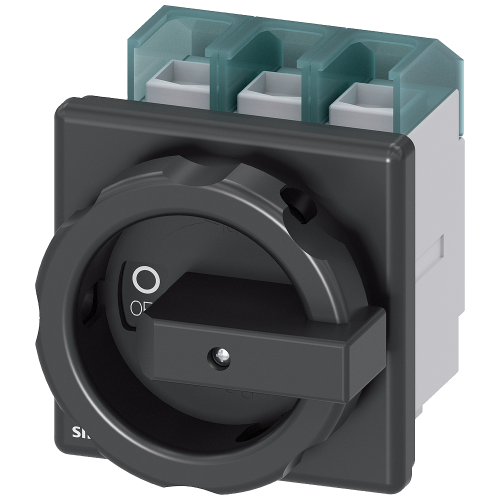

SIEMENS lastschakelaar sentron 3p 100a 3LD27040TK51

Artikelnummer 11010040

Artikelnummer: 11010040
Artikelnummer fabrikant: 3LD27040TK51
EAN Code: 4011209403604

Siemens AG, SENTRON 3LD2, 3LD switch disconnector, main sw..., SENTRON, 3LD switch disconnector, main control switch, 3-pole, Iu: 100, 112,5, IP65, Frameklem, Korte draaigreep, Zwart, Inbouwapparaat vaste inbouw techniek

SENTRON, switch disconnector 3LD, main switch, 3-pole, Iu: 100 A, operating power / at AC-23 A at 400 V: 37 kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle for the safe shutdown of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in machining and processing machines in mechanical and conveyor system construction, in the chemical or in the food and beverage industry Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism. Degree of protection IP65 with encapsulated enclosure for outdoor applications. Versatile and can be used worldwide thanks to international IEC, UL, CCC, and shipbuilding approvals. The 3LD main and EMERGENCY-OFF switches are available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribu

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11010040
Artikelnummer fabrikant: 3LD27040TK51
EAN Code: 4011209403604

Siemens AG, SENTRON 3LD2, 3LD switch disconnector, main sw..., SENTRON, 3LD switch disconnector, main control switch, 3-pole, Iu: 100, 112,5, IP65, Frameklem, Korte draaigreep, Zwart, Inbouwapparaat vaste inbouw techniek

SENTRON, switch disconnector 3LD, main switch, 3-pole, Iu: 100 A, operating power / at AC-23 A at 400 V: 37 kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle for the safe shutdown of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in machining and processing machines in mechanical and conveyor system construction, in the chemical or in the food and beverage industry Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism. Degree of protection IP65 with encapsulated enclosure for outdoor applications. Versatile and can be used worldwide thanks to international IEC, UL, CCC, and shipbuilding approvals. The 3LD main and EMERGENCY-OFF switches are available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribu

Eigenschappen
Algemeen
Breedte 90
Aantal polen 3
Hoogte 107
Diepte 112,5
Beschermingsgraad (NEMA) Overig
Uitvoering van het bedieningselement Korte draaigreep
Beschermingsgraad frontzijde (IP) IP65
Kleur bedieningselement Zwart
Nom. continustroom Iu 100 A
Nom. vermogen bij AC-3, 400 V 30 kW
Aantal hulpcontacten als maakcontact 0
Aantal hulpcontacten als verbreekcontact 0
Aansluitwijze hoofdstroomcircuit Frameklem
Aantal hulpcontacten als wisselcontact 0
Vergrendelbaar Ja
Motoraandrijving geïntegreerd Nee
Uitvoering als noodstopinrichting Nee
Uitvoering als hoofdschakelaar Ja
Uitvoering als veiligheidsschakelaar Ja
Uitvoering als werkschakelaar Ja
Nom. vermogen, AC-23, 400 V 37 kW
Geschikt voor bodemmontage Nee
Geschikt voor frontmontage 4-gats Ja
Geschikt voor frontmontage centraal Nee
Max. nom. bedrijfsspanning Ue bij AC 690 V
Motoraandrijving optioneel Nee
Uitschakelspoel optioneel Nee
Apparaatbouwvorm Inbouwapparaat vaste inbouw techniek
Nom. continustroom, AC-21, 400 V 100 A
Uitvoering als omkeerschakelaar Nee
Toegelaten korte-duur stroom Icw 2 kA
Vloermontage Nee
Aantal schakelaars 1
Nom. continustroom, AC-23, 400 V 70 A
Model SENTRON 3LD2
Met voorbereidde bekabeling Nee
