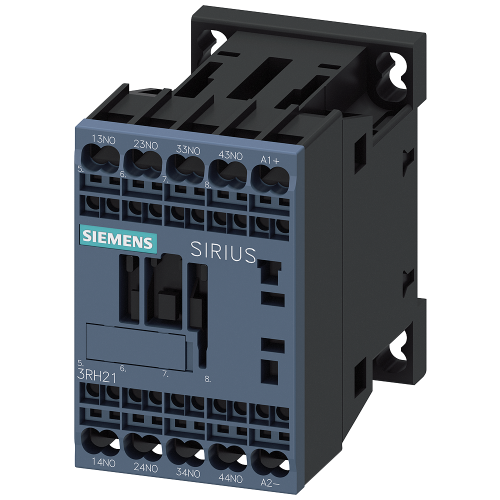

SIEMENS hulprelais 4no 24vdc 3RH2140-2JB40

Artikelnummer 11009545

Artikelnummer: 11009545
Artikelnummer fabrikant: 3RH21402JB40
EAN Code: 4011209846210

Siemens AG, SIRIUS 3RH2, COUPL.CONT.RELAY,4NO,DC24V,DIODE, Coupling contactor relay, 4 NO, 24 V DC, S00, spring-loaded terminal, , DIN-rail, Veerklemaansluiting, DC

coupling contactor relay, 4 NO, 24 V DC, 0.7-1.25*Us, with integrated diode, spring-loaded terminal, frame size S00, suitable for PLC outputs, not expandable with auxiliary switch SIRIUS 3RH2 coupling contactor relay for switching the control signals in the control circuit with option of direct connection to electronic controllers. The SIRIUS 3RH2 coupling contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. The contacts are available with positively driven operation for safety applications as well as SUVA versions. The coupling contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available with AC or DC operation and with screw or spring-loaded terminals. The extensive range of accessories for t

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11009545
Artikelnummer fabrikant: 3RH21402JB40
EAN Code: 4011209846210

Siemens AG, 4, 3 A, Veerklemaansluiting, DC, DIN-rail, 45, 70, 73, SIRIUS 3RH2, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 45
Montagewijze DIN-rail
Hoogte 70
Diepte 73
Aansluitwijze hulpstroomcircuit Veerklemaansluiting
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Met LED indicatie Nee
Handbediening Nee
Aantal hulpcontacten als maakcontact 4
Aantal hulpcontacten als verbreekcontact 0
Nom. bedrijfsstroom Ie, 400 V 3 A
Interface Nee
Handbediening mogelijk Nee
Model SIRIUS 3RH2
