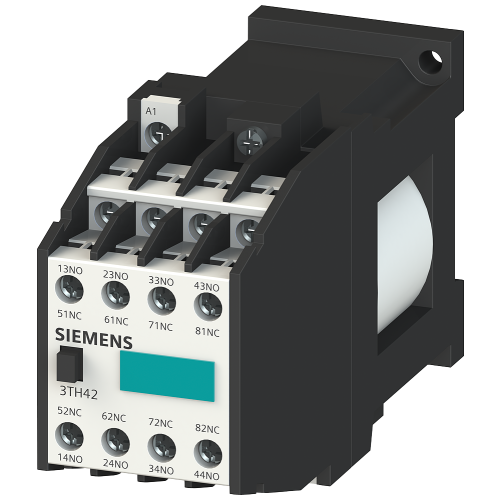

SIEMENS hulprelais 24vdc 4no+4nc 3TH4244-0BB4

Artikelnummer 6292226

Artikelnummer: 6292226
Artikelnummer fabrikant: 3TH42440BB4
EAN Code: 4011209047952

Siemens AG, 3TH4, CONTACTOR RELAY 44E EN 50 011, Contactor relay 44E, 4 NO + 4 NC, DC op., 24 V DC, DIN-rail, Schroefaansluiting, DC

contactor relay, 44E, 4 NO + 4 NC, screw terminal, DC operation 24 V DC for switching the control signals in the control circuit The SIRIUS 3TH4 contactor relays have standard-compliant terminal designations and a reliable connection technology. Thanks to the multiplication of outputs, simultaneous switching of up to 10 auxiliary circuits is possible. The contacts are designed with positively driven operation for safety applications as well as SUVA versions. The devices are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). The 3TH4 contactor relays are available with AC or DC operation in various versions with 8 or 10 poles. Available accessories include surge suppressors, time-delay blocks and coupling links.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292226
Artikelnummer fabrikant: 3TH42440BB4
EAN Code: 4011209047952

Siemens AG, 4, 4, 6 A, Schroefaansluiting, DC, DIN-rail, 45, 78, 135, 3TH4, 24.000 - 24.000 V

Eigenschappen
Algemeen
Breedte 45
Montagewijze DIN-rail
Hoogte 78
Diepte 135
Aansluitwijze hulpstroomcircuit Schroefaansluiting
Type stuurspanning DC
Nom. stuurspanning Us bij DC 24.000 - 24.000 V
Met LED indicatie Nee
Handbediening Nee
Aantal hulpcontacten als maakcontact 4
Aantal hulpcontacten als verbreekcontact 4
Aantal hulpcontacten als wisselcontact 0
Nom. bedrijfsstroom Ie, 400 V 6 A
Aantal hulpcontacten als verbreekcontact, vertraagd schakelend 0
Aantal hulpcontacten als maakcontact, voorlopend 0
Interface Nee
Handbediening mogelijk Nee
Model 3TH4
