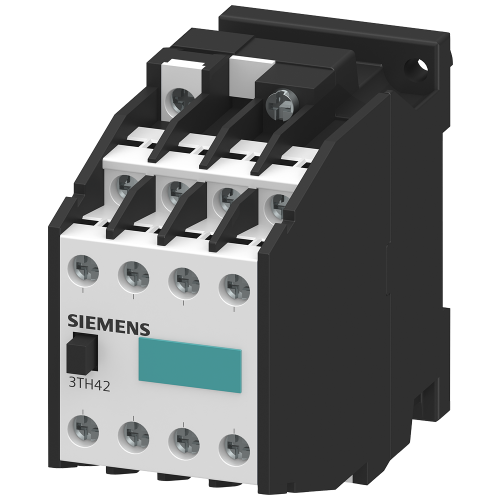

SIEMENS hulprelais 230vac 8no 3TH4280-0AP0
Artikelnummer: 6292242
Artikelnummer fabrikant: 3TH42800AP0
EAN Code: 4011209048812
Siemens AG, 3TH4, CONTACTOR RELAY 80E EN 50 011, Contactor relay 80E, 8 NO, AC op. 230 V AC 50 Hz, 277 V, DIN-rail, Schroefaansluiting, AC
contactor relay, 80E, 8 NO, screw terminal, AC operation 230 V AC 50 Hz, 277 V 60 Hz for switching the control signals in the control circuit The SIRIUS 3TH4 contactor relays have standard-compliant terminal designations and a reliable connection technology. Thanks to the multiplication of outputs, simultaneous switching of up to 10 auxiliary circuits is possible. The contacts are designed with positively driven operation for safety applications as well as SUVA versions. The devices are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). The 3TH4 contactor relays are available with AC or DC operation in various versions with 8 or 10 poles. Available accessories include surge suppressors, time-delay blocks and coupling links.
| Breedte | 45 |
| Montagewijze | DIN-rail |
| Hoogte | 78 |
| Diepte | 102 |
| Aansluitwijze hulpstroomcircuit | Schroefaansluiting |
| Type stuurspanning | AC |
| Nom. stuurspanning Us bij AC 50HZ | 230.000 - 230.000 V |
| Nom. stuurspanning Us bij AC 60HZ | 277.000 - 277.000 V |
| Met LED indicatie | Nee |
| Handbediening | Nee |
| Aantal hulpcontacten als maakcontact | 8 |
| Aantal hulpcontacten als verbreekcontact | 0 |
| Aantal hulpcontacten als wisselcontact | 0 |
| Nom. bedrijfsstroom Ie, 400 V | 6 A |
| Aantal hulpcontacten als verbreekcontact, vertraagd schakelend | 0 |
| Aantal hulpcontacten als maakcontact, voorlopend | 0 |
| Interface | Nee |
| Handbediening mogelijk | Nee |
| Model | 3TH4 |
