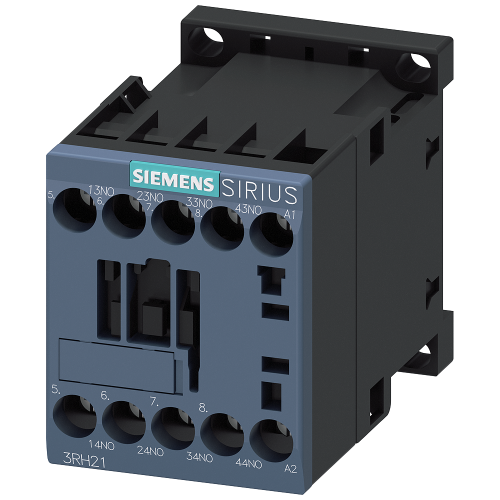

SIEMENS hulprelais 230vac 4no 3RH2140-1AP00

Artikelnummer 6292236

Artikelnummer: 6292236
Artikelnummer fabrikant: 3RH21401AP00
EAN Code: 4011209828506

Siemens AG, SIRIUS 3RH2, CONT.RELAY,4NO,AC230V 50/60HZ, Contactor relay, 4 NO, 230 V AC, 50/60 Hz, S00, screw terminal, DIN-rail, 57,5, Schroefaansluiting, AC

contactor relay, 4 NO, 230 V AC, 50/60 Hz, screw terminal, frame size S00 SIRIUS 3RH2 contactor relay for switching the control signals in the control circuit The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available with AC or DC operation and with screw or spring-loaded terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches. The extensive range of accessories for the 3RT2 contactors in sizes S00 to S3 can also be used f

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 6292236
Artikelnummer fabrikant: 3RH21401AP00
EAN Code: 4011209828506

Siemens AG, 4, 3 A, Schroefaansluiting, AC, DIN-rail, 45, 57,5, 73, SIRIUS 3RH2, 230.000 - 230.000 V, 230.000 - 230.000 V

Eigenschappen
Algemeen
Breedte 45
Montagewijze DIN-rail
Hoogte 57,5
Diepte 73
Aansluitwijze hulpstroomcircuit Schroefaansluiting
Type stuurspanning AC
Nom. stuurspanning Us bij AC 50HZ 230.000 - 230.000 V
Nom. stuurspanning Us bij AC 60HZ 230.000 - 230.000 V
Met LED indicatie Nee
Handbediening Nee
Aantal hulpcontacten als maakcontact 4
Aantal hulpcontacten als verbreekcontact 0
Nom. bedrijfsstroom Ie, 400 V 3 A
Interface Nee
Handbediening mogelijk Nee
Model SIRIUS 3RH2
