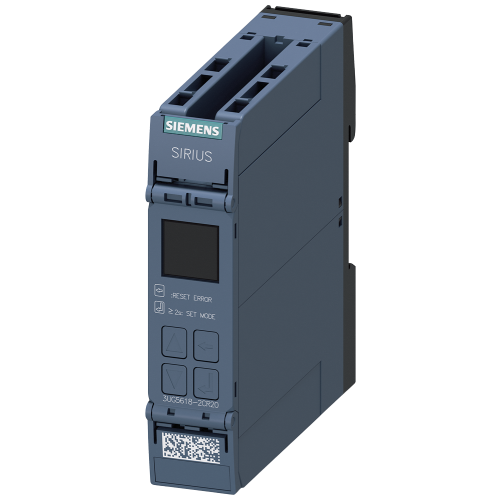

SIEMENS fasebewakingsrelais 3UG5618-2CR20

Artikelnummer 11005675

Artikelnummer: 11005675
Artikelnummer fabrikant: 3UG56182CR20
EAN Code: 4047621099972

Siemens AG, SIRIUS 3UG5, Line monitoring AC 90..690V, 2CO, Line monitoring relay, digital, ph. failure, ph. sequence, asymmetry, , AC, Veerklemaansluiting, AC/DC, 120.000 - 690.000, 120.000 - 690.000, 120.000 - 690.000, 120.000 - 690.000, AC

digitally adjustable monitoring relay phase failure, phase sequence, asymmetry, frequency, overvoltage and undervoltage monitoring, with/without N conductor with phase sequence correction 3x 90-690 V AC, 15-70 Hz 2 changeover contacts spring-loaded terminal for monitoring phase sequence, phase failure and phase asymmetry, undervoltage and overvoltage as well as frequency, e.g. in case of unstable networks or with mobile systems such as A/C compressors, refrigerated containers, construction site compressors, cranes or photovoltaic systems and wind turbines Worldwide use thanks to wide voltage supply range and international certificates. The relay is variably adjustable to overshoot, undershoot or window monitoring. Delay times and RESET behavior are freely parameterizable. Less space required in the control cabinet thanks to slim design. Reliable diagnostics due to display of the actual value and type of power system fault. All versions with removable terminals. In addition to screw ter

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11005675
Artikelnummer fabrikant: 3UG56182CR20
EAN Code: 4047621099972

Siemens AG, 22,5 mm, 100 mm, 90 mm, 90.000 - 760.000 V, 120.000 - 690.000 V, 120.000 - 690.000 V, 999,9 s, 0,1 s, 999,9 s, 0,1 s, AC, 2, AC, Veerklemaansluiting, AC/DC, 3, 120.000 - 690.000, 120.000 - 690.000, 120.000 - 690.000, 120.000 - 690.000, SIRIUS 3UG5

Eigenschappen
Algemeen
Breedte 22,5 mm
Hoogte 100 mm
Diepte 90 mm
Uitvoering elektrische aansluiting Veerklemaansluiting
Aantal contacten als verbreekcontact 0
Aantal contacten als maakcontact 0
Aantal contacten als wisselcontact 2
Bedrijfsspanning bij AC 60 Hz 120.000 - 690.000
Bedrijfsspanning bij AC 50 Hz 120.000 - 690.000
Type stuurspanning AC
Nom. stuurspanning Us bij AC 50HZ 120.000 - 690.000 V
Nom. stuurspanning Us bij AC 60HZ 120.000 - 690.000 V
Spanningstype voedingsspanning AC
Nom. (meet)schakelstroom 3
Met afneembare klemmen Ja
Max. toegestane afvalvertragingstijd 999,9 s
Min. instelbare afvalvertragingstijd 0,1 s
Spanningsmeetbereik 90.000 - 760.000 V
Fasevolgordebewakingsfunctie Ja
Fase-uitvalfunctie Ja
Functie onderspanningsdetectie Ja
Functie overspanningsdetectie Ja
Fase-onbalansfunctie Ja
Spanningstype van de bedrijfsspanning AC/DC
Externe stroomvoorziening vereist Nee
Voedingsspanning bij AC 50Hz 120.000 - 690.000
Voedingsspanning bij AC 60Hz 120.000 - 690.000
Max. toegestane opkomvertragingstijd 999,9 s
Min. instelbare opkomvertragingstijd 0,1 s
Model SIRIUS 3UG5
