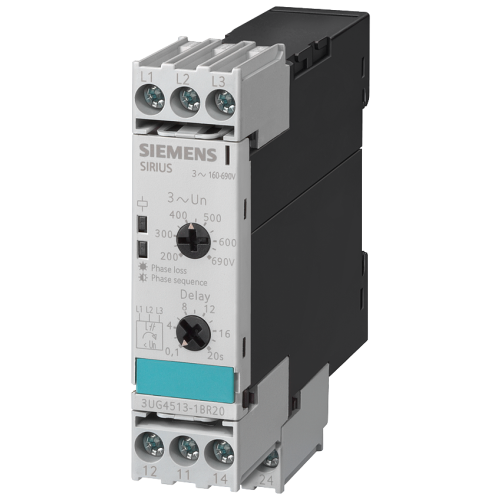

SIEMENS fasebewakingsrelais 3UG45131BR20
Artikelnummer: 6292222
Artikelnummer fabrikant: 3UG45131BR20
EAN Code: 4011209642263
Siemens AG, SIRIUS 3UG4, PHASE FAILURE AND SEQUENCE, Analog monitoring relay, phase failure and sequence unbalance 20% fixe, AC, Schroefaansluiting, 160.000 - 690.000, 160.000 - 690.000, AC
!!! product phase-out !!! the preferred successor is 3UG5514-1BR20, analog monitoring relay phase failure and phase sequence monitoring, adjustable undervoltage, asymmetry 20% fixed, 3x 160-690 V AC 50-60 Hz, hysteresis 5% fixed, delay time 0-20 s, 2 changeover contacts, screw terminal for monitoring phase sequence, phase failure and phase asymmetry and/or undervoltage, e.g. with mobile systems such as A/C compressors, refrigerated containers, construction site compressors or cranes Worldwide use thanks to international certificates. Different versions enable application-related selection of products. Less space required in the control cabinet thanks to slim design. All versions with removable terminals. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. Versions with a wide voltage range and without auxiliary voltage can be used in any networks worldwide. The comprehensive range of ac
| Breedte | 22,5 mm |
| Hoogte | 92 mm |
| Diepte | 91 mm |
| Uitvoering elektrische aansluiting | Schroefaansluiting |
| Aantal contacten als verbreekcontact | 0 |
| Aantal contacten als maakcontact | 0 |
| Aantal contacten als wisselcontact | 2 |
| Type stuurspanning | AC |
| Nom. stuurspanning Us bij AC 50HZ | 160.000 - 690.000 V |
| Nom. stuurspanning Us bij AC 60HZ | 160.000 - 690.000 V |
| Spanningstype voedingsspanning | AC |
| Nom. (meet)schakelstroom | 3 |
| Met afneembare klemmen | Ja |
| Spanningsmeetbereik | 160.000 - 690.000 V |
| Fasevolgordebewakingsfunctie | Ja |
| Fase-uitvalfunctie | Ja |
| Functie onderspanningsdetectie | Ja |
| Functie overspanningsdetectie | Nee |
| Fase-onbalansfunctie | Ja |
| Voedingsspanning bij AC 50Hz | 160.000 - 690.000 |
| Voedingsspanning bij AC 60Hz | 160.000 - 690.000 |
| Model | SIRIUS 3UG4 |
