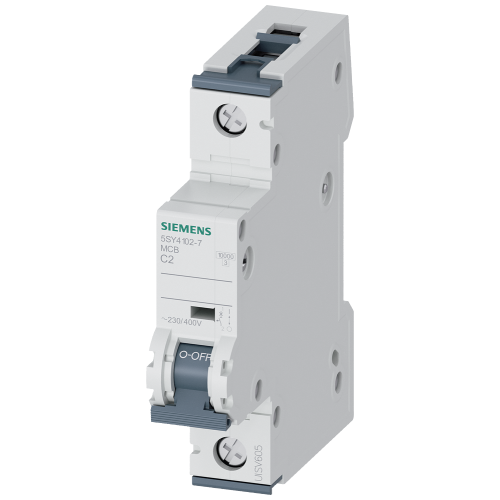

SIEMENS automaat c2 1p 5SY4102-7

Artikelnummer 11007733

Artikelnummer: 11007733
Artikelnummer fabrikant: 5SY41027
EAN Code: 4001869181325

Siemens AG, SENTRON 5SY4, CIRCUIT BREAKER 10KA 1POL C2, Miniature circuit breaker 230/400 V 10 kA, 1-pole, C, 2 A, D=70 mm, AC, C, 1,2, IP20

Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 2A, D=70 mm SENTRON 5SY4 miniature circuit breaker for fail-safe short-circuit and overload protection for residential and commercial buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11007733
Artikelnummer fabrikant: 5SY41027
EAN Code: 4001869181325

Siemens AG, SENTRON 5SY4, CIRCUIT BREAKER 10KA 1POL C2, Miniature circuit breaker 230/400 V 10 kA, 1-pole, C, 2 A, D=70 mm, AC, C, 1,2, IP20

Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 2A, D=70 mm SENTRON 5SY4 miniature circuit breaker for fail-safe short-circuit and overload protection for residential and commercial buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Spanningstype AC
Inbouwdiepte 70 mm
Nom. (meet)stroom 2 A
Nom. (meet)spanning 400 V
Inbouwmontage (stucwerk) Nee
Frequentie 50.000 - 50.000 Hz
Breedte in module-eenheden 1
Geschikt voor inbouwinstallatie (stucwerk) Nee
Explosieveilig Nee
Omgevingstemperatuur tijdens bedrijf -40.000 - 70.000 °C
Nevenapparaat mogelijk Ja
Aansluitbare geleiderdoorsnede eendraads 0.750 - 35.000 mm²
Aansluitbare geleiderdoorsnede meerdraads 0.750 - 35.000 mm²
Nom. isolatiespanning Ui 440 V
Uitschakelkarakteristiek C
Energiebegrenzingsklasse 3
Vervuilingsgraad 3
Aantal beveiligde polen 1
Meeschakelende nul Nee
Aantal polen (totaal) 1
Nom. stoothoudspanning (Uimp) 4 kV
Overspanningscategorie 3
Nom. afschakelvermogen Icn EN 60898 bij 230 V 10 kA
Nom. afschakelvermogen Icu IEC 60947-2 bij 230 V 35 kA
Nom. afschakelvermogen Icu IEC 60947-2 bij 400 V 35 kA
Nom. afschakelvermogen Icn EN 60898 bij 400 V 10 kA
Verliesvermogen 1,2
Model SENTRON 5SY4
