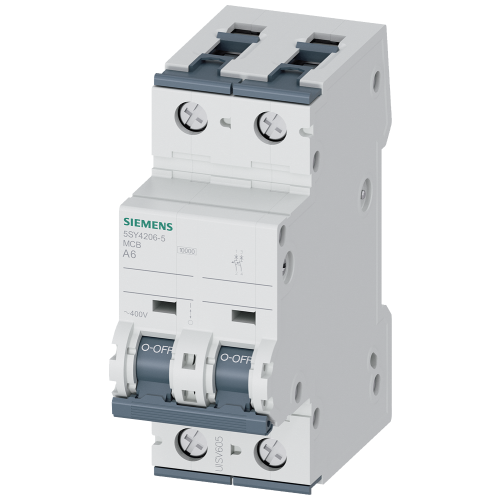

SIEMENS automaat a6 1p+n 5SY4206-5

Artikelnummer 11009899

Artikelnummer: 11009899
Artikelnummer fabrikant: 5SY42065
EAN Code: 4001869201184

Siemens AG, SENTRON 5SY4, CIRCUIT BREAKER 10KA 2POL A6, Miniature circuit breaker 400 V 10 kA, 2-pole, A, 6 A, D=70 mm, AC, A, 4,4, IP20

Miniature circuit breaker 400 V 10kA, 2-pole, A, 6A, D=70 mm SENTRON 5SY4 miniature circuit breaker for fail-safe short-circuit and overload protection for residential and commercial buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11009899
Artikelnummer fabrikant: 5SY42065
EAN Code: 4001869201184

Siemens AG, AC, 70 mm, 6 A, 400 V, A, 440 V, 3, 3, 2, 0.750 - 35.000 mm², 0.750 - 35.000 mm², -40.000 - 70.000 °C, 2, 10 kA, 10 kA, 35 kA, 35 kA, 4 kV, 50.000 - 50.000 Hz, 4,4, IP20, 2, SENTRON 5SY4

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Spanningstype AC
Inbouwdiepte 70 mm
Nom. (meet)stroom 6 A
Nom. (meet)spanning 400 V
Inbouwmontage (stucwerk) Nee
Frequentie 50.000 - 50.000 Hz
Breedte in module-eenheden 2
Geschikt voor inbouwinstallatie (stucwerk) Nee
Explosieveilig Nee
Omgevingstemperatuur tijdens bedrijf -40.000 - 70.000 °C
Nevenapparaat mogelijk Ja
Aansluitbare geleiderdoorsnede eendraads 0.750 - 35.000 mm²
Aansluitbare geleiderdoorsnede meerdraads 0.750 - 35.000 mm²
Nom. isolatiespanning Ui 440 V
Uitschakelkarakteristiek A
Vervuilingsgraad 3
Aantal beveiligde polen 2
Meeschakelende nul Nee
Aantal polen (totaal) 2
Nom. stoothoudspanning (Uimp) 4 kV
Overspanningscategorie 3
Nom. afschakelvermogen Icn EN 60898 bij 230 V 10 kA
Nom. afschakelvermogen Icu IEC 60947-2 bij 230 V 35 kA
Nom. afschakelvermogen Icu IEC 60947-2 bij 400 V 35 kA
Nom. afschakelvermogen Icn EN 60898 bij 400 V 10 kA
Verliesvermogen 4,4
Model SENTRON 5SY4
