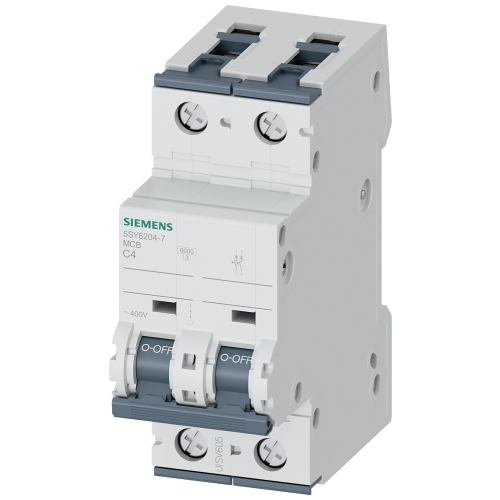

SIEMENS automaat 5sy6 2p c4a 5SY6204-7
Artikelnummer: 11007126
Artikelnummer fabrikant: 5SY62047
EAN Code: 4001869246482
Siemens AG, SENTRON 5SY6, CIRCUIT BREAKER 6KA 2POL C4, Miniature circuit breaker 400 V 6 kA, 2-pole, C, 4 A, D=70 mm, AC, C, 2,6, IP20
Miniature circuit breaker 400 V 6kA, 2-pole, C, 4A, D=70 mm SENTRON 5SY6 miniature circuit breaker for fail-safe short-circuit and overload protection for residential and commercial buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.
| Beschermingsgraad (IP) | IP20 |
| Spanningstype | AC |
| Inbouwdiepte | 70 mm |
| Nom. (meet)stroom | 4 A |
| Nom. (meet)spanning | 400 V |
| Inbouwmontage (stucwerk) | Nee |
| Frequentie | 50.000 - 50.000 Hz |
| Breedte in module-eenheden | 2 |
| Geschikt voor inbouwinstallatie (stucwerk) | Nee |
| Explosieveilig | Nee |
| Omgevingstemperatuur tijdens bedrijf | -25.000 - 55.000 °C |
| Nevenapparaat mogelijk | Ja |
| Aansluitbare geleiderdoorsnede eendraads | 0.750 - 35.000 mm² |
| Aansluitbare geleiderdoorsnede meerdraads | 0.750 - 35.000 mm² |
| Nom. isolatiespanning Ui | 440 V |
| Uitschakelkarakteristiek | C |
| Energiebegrenzingsklasse | 3 |
| Vervuilingsgraad | 3 |
| Aantal beveiligde polen | 2 |
| Meeschakelende nul | Nee |
| Aantal polen (totaal) | 2 |
| Nom. stoothoudspanning (Uimp) | 4 kV |
| Overspanningscategorie | 3 |
| Nom. afschakelvermogen Icn EN 60898 bij 230 V | 6 kA |
| Nom. afschakelvermogen Icu IEC 60947-2 bij 230 V | 30 kA |
| Nom. afschakelvermogen Icu IEC 60947-2 bij 400 V | 30 kA |
| Nom. afschakelvermogen Icn EN 60898 bij 400 V | 6 kA |
| Verliesvermogen | 2,6 |
| Model | SENTRON 5SY6 |
