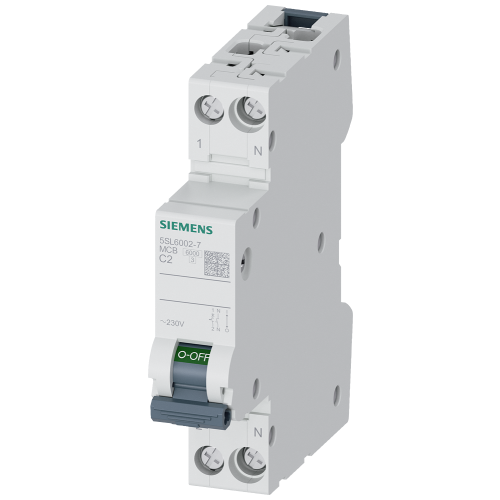

SIEMENS automaat 1p+n c2a 6ka 5SL60027

Artikelnummer 11003509

Artikelnummer: 11003509
Artikelnummer fabrikant: 5SL60027
EAN Code: 4001869533889

Siemens AG, SENTRON 5SL6, CIRCUIT BREAKER 6KA 1+N/1MW C2, Miniature circuit breaker 230 V 6 kA, 1+N-pole/1 MW C2, AC, C, 1,3, IP20

miniature circuit breaker 230 V, 6 kA, 1+N-pole, 1 MW, C2 SENTRON 5SL6 miniature circuit breaker for fail-safe short-circuit and overload protection for standard applications in residential and commercial buildings Installation of the device and simple wiring of the infeed through the rear busbar without tools. The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions and in further special types. The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways. Simply safe with the protection devices from SENTRON.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11003509
Artikelnummer fabrikant: 5SL60027
EAN Code: 4001869533889

Siemens AG, AC, 70 mm, 2 A, 230 V, C, 250 V, 3, 3, 2, 1, 0.750 - 16.000 mm², 0.750 - 16.000 mm², -25.000 - 60.000 °C, 2, 6 kA, 6 kA, 4 kV, 50.000 - 50.000 Hz, 1,3, IP20, 1, SENTRON 5SL6

Eigenschappen
Algemeen
Beschermingsgraad (IP) IP20
Spanningstype AC
Inbouwdiepte 70 mm
Nom. (meet)stroom 2 A
Nom. (meet)spanning 230 V
Inbouwmontage (stucwerk) Nee
Frequentie 50.000 - 50.000 Hz
Breedte in module-eenheden 1
Geschikt voor inbouwinstallatie (stucwerk) Nee
Explosieveilig Nee
Omgevingstemperatuur tijdens bedrijf -25.000 - 60.000 °C
Nevenapparaat mogelijk Ja
Aansluitbare geleiderdoorsnede eendraads 0.750 - 16.000 mm²
Aansluitbare geleiderdoorsnede meerdraads 0.750 - 16.000 mm²
Nom. isolatiespanning Ui 250 V
Uitschakelkarakteristiek C
Energiebegrenzingsklasse 3
Vervuilingsgraad 2
Aantal beveiligde polen 1
Meeschakelende nul Ja
Aantal polen (totaal) 2
Nom. stoothoudspanning (Uimp) 4 kV
Overspanningscategorie 3
Nom. afschakelvermogen Icn EN 60898 bij 230 V 6 kA
Nom. afschakelvermogen Icn EN 60898 bij 400 V 6 kA
Verliesvermogen 1,3
Model SENTRON 5SL6
