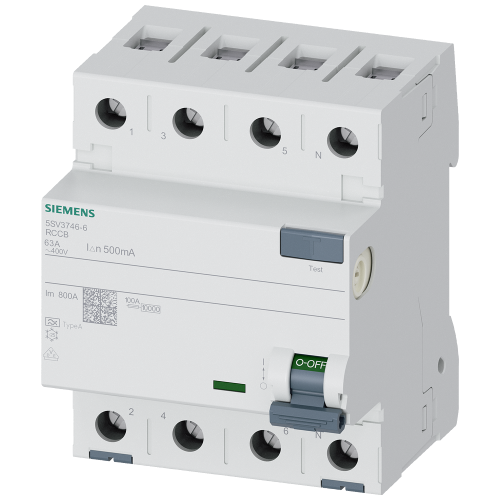

SIEMENS aardlekschakelaar 63a 0,5a 5SV37466

Artikelnummer 9877933

Artikelnummer: 9877933
Artikelnummer fabrikant: 5SV37466
EAN Code: 4001869427904

Siemens AG, SENTRON 5SV3, RCCB, RCCB, 4-pole, type A, In: 63 A, 500 mA, Un AC: 400 V, Grijs, AC, 0,5, A, 3,9, 50 Hz, IP20

Residual current operated circuit breaker, 4-pole, type A, In: 63 A, 500 mA, Un AC: 400 V SENTRON 5SV3 residual current operated circuit breaker for comprehensive protection against electric shock for persons and property. The RCCBs provide reliable safety in the installation due to the reach-around and touch protection that they contain as standard. Simply by operating a manual slide, you can remove the RCCB from the DIN rail or the busbar assembly without the use of a tool. Via the Data Matrix code on the device, you can gain fast access to all technical data in the Siemens Industry Online Support App. The SENTRON protective switching devices can be expanded by many additional functions with consistent accessories from the modular system. Optimized technology for your safety - only from Siemens.

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 9877933
Artikelnummer fabrikant: 5SV37466
EAN Code: 4001869427904

Siemens AG, AC, 70 mm, 63 mA, 400 V, 2.000 V, 4, 0,5, A, 10 kA, 1 kA, 2, 4, 50 Hz, 0.750 - 35.000 mm², 0.750 - 35.000 mm², -25.000 - 45.000 °C, 6 kV, 7.035, 3,9, IP20, 72, 90, 70, SENTRON 5SV3, Grijs

Eigenschappen
Algemeen
Kleur Grijs
RAL-nummer (vergelijkbaar) 7.035
Beschermingsgraad (IP) IP20
Spanningstype AC
Aantal polen 4
Montagewijze Overig
Inbouwdiepte 70 mm
Nom. (meet)stroom 63 mA
Nom. (meet)spanning 400 V
Schakelmateriaalbreedte 72
Schakelmateriaalhoogte 90
Schakelmateriaaldiepte 70
Breedte in module-eenheden 4
Explosieveilig Nee
Nom. foutstroom 0,5
Omgevingstemperatuur tijdens bedrijf -25.000 - 45.000 °C
Nevenapparaat mogelijk Ja
Aansluitbare geleiderdoorsnede eendraads 0.750 - 35.000 mm²
Aansluitbare geleiderdoorsnede meerdraads 0.750 - 35.000 mm²
Nom. isolatiespanning Ui 2.000 V
Type lekstroom A
Vervuilingsgraad 2
Frequentie 50 Hz
Nom. stoothoudspanning (Uimp) 6 kV
Selectieve bescherming Nee
Kortsluitvastheid (Icw) 10 kA
Stootspanningsvastheid 1 kA
Kortstondigvertraagd type Nee
Met vergrendelingsvoorziening Ja
Verliesvermogen 3,9
Model SENTRON 5SV3
