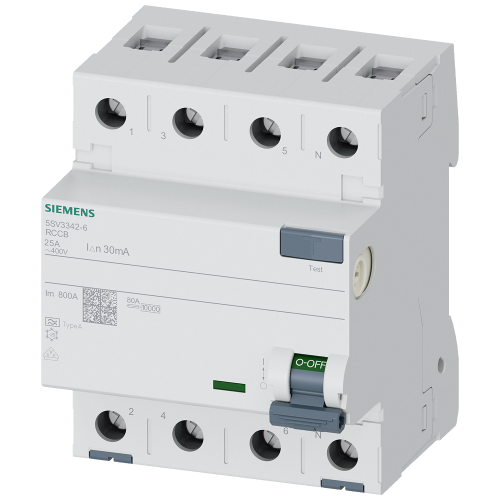

SIEMENS aardlekschakelaar 25a 4p 30ma 5SV33426
Artikelnummer: 11002959
Artikelnummer fabrikant: 5SV33426
EAN Code: 4001869427768
Siemens AG, SENTRON 5SV3, RCCB, RCCB, 4-pole, type A, In: 25 A, 30 mA, Un AC: 400 V, Grijs, AC, 0,03, A, 1,3, 50 Hz, IP20
Residual current operated circuit breaker, 4-pole, type A, In: 25 A, 30 mA, Un AC: 400 V SENTRON 5SV3 residual current operated circuit breaker for comprehensive protection against electric shock for persons and property. The RCCBs provide reliable safety in the installation due to the reach-around and touch protection that they contain as standard. Simply by operating a manual slide, you can remove the RCCB from the DIN rail or the busbar assembly without the use of a tool. Via the Data Matrix code on the device, you can gain fast access to all technical data in the Siemens Industry Online Support App. The SENTRON protective switching devices can be expanded by many additional functions with consistent accessories from the modular system. Optimized technology for your safety - only from Siemens.
| Kleur | Grijs |
| RAL-nummer (vergelijkbaar) | 7.035 |
| Beschermingsgraad (IP) | IP20 |
| Spanningstype | AC |
| Aantal polen | 4 |
| Montagewijze | Overig |
| Inbouwdiepte | 70 mm |
| Nom. (meet)stroom | 25 mA |
| Nom. (meet)spanning | 400 V |
| Schakelmateriaalbreedte | 72 |
| Schakelmateriaalhoogte | 90 |
| Schakelmateriaaldiepte | 70 |
| Breedte in module-eenheden | 4 |
| Explosieveilig | Nee |
| Nom. foutstroom | 0,03 |
| Omgevingstemperatuur tijdens bedrijf | -25.000 - 45.000 °C |
| Nevenapparaat mogelijk | Ja |
| Aansluitbare geleiderdoorsnede eendraads | 0.750 - 35.000 mm² |
| Aansluitbare geleiderdoorsnede meerdraads | 0.750 - 35.000 mm² |
| Nom. isolatiespanning Ui | 2.000 V |
| Type lekstroom | A |
| Vervuilingsgraad | 2 |
| Frequentie | 50 Hz |
| Nom. stoothoudspanning (Uimp) | 6 kV |
| Selectieve bescherming | Nee |
| Kortsluitvastheid (Icw) | 10 kA |
| Stootspanningsvastheid | 1 kA |
| Kortstondigvertraagd type | Nee |
| Met vergrendelingsvoorziening | Ja |
| Verliesvermogen | 1,3 |
| Model | SENTRON 5SV3 |
