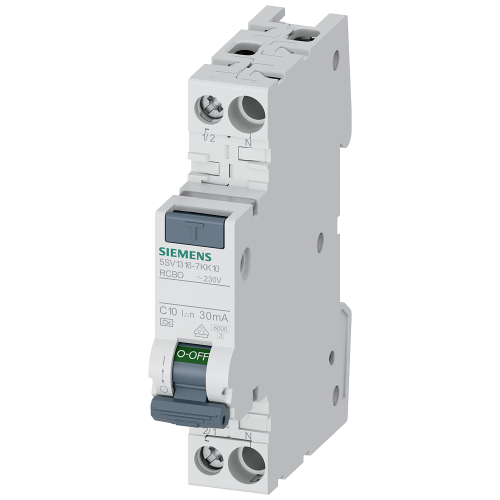

SIEMENS aardlekautomaat c10a 1p+n 30ma 6ka
Artikelnummer: 9877883
Artikelnummer fabrikant: 5SV13167KK10
EAN Code: 4001869557878
Siemens AG, SENTRON 5SV1, RCBO compact 6kA Type A 30mA C10, RCBO compact 1-pole+N 6 kA type A 30 mA C10, AC, C, A, 1,9, IP20, Onvertraagd
RCBO compact 1 MW 1-pole+N 6 kA type A 30 mA C10 for combined protection against overload, short circuit and fault currents in only 1 MW Our compact RCBOs are VDE-tested and certified according to EN 61009-1, EN 61009-2-1. With the 5ST compact pin busbar system, you can quickly and easily connect the 1P+N compact devices in only 1 MW without additional space requirement. Via the Data Matrix code on the device, you can gain fast access to all technical data in the Siemens Industry Online Support App. The SENTRON protective switching devices can be expanded by many additional functions with consistent accessories from the modular system. Optimized technology for your safety - only from Siemens.
| Beschermingsgraad (IP) | IP20 |
| Spanningstype | AC |
| Inbouwdiepte | 70 mm |
| Nom. (meet)stroom | 10 A |
| Nom. (meet)spanning | 230 V |
| Inbouwmontage (stucwerk) | Ja |
| Breedte in module-eenheden | 1 |
| Geschikt voor inbouwinstallatie (stucwerk) | Ja |
| Nom. foutstroom | 0,03 A |
| Omgevingstemperatuur tijdens bedrijf | -25.000 - 45.000 °C |
| Aansluitbare geleiderdoorsnede eendraads | 0.750 - 16.000 mm² |
| Aansluitbare geleiderdoorsnede meerdraads | 0.750 - 16.000 mm² |
| Nom. isolatiespanning Ui | 253 V |
| Uitschakelkarakteristiek | C |
| Type lekstroom | A |
| Energiebegrenzingsklasse | 3 |
| Vervuilingsgraad | 2 |
| Aantal beveiligde polen | 1 |
| Meeschakelende nul | Ja |
| Aantal polen (totaal) | 2 |
| High-immunity uitvoering | Ja |
| Nom. stoothoudspanning (Uimp) | 4 kV |
| Afschakelkarakteristiek | Onvertraagd |
| Nom. afschakelvermogen volgens EN 61009 | 6 kA |
| Stootspanningsvastheid | 1 kA |
| Met vergrendelingsvoorziening | Ja |
| Nom. afschakelvermogen IEC 60947-2 | 10 kA |
| Overspanningscategorie | 3 |
| Verliesvermogen | 1,9 |
| Nom. kortsluitafschakelvermogen Icn volgens EN 61009-1 | 6 kA |
| Model | SENTRON 5SV1 |
