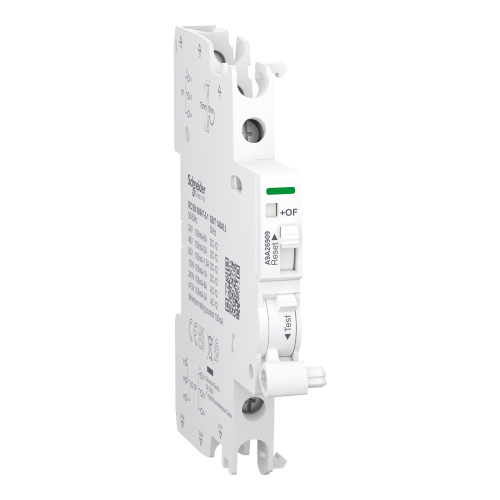

SE hulpcontact 2w 100m a-6a A9A26909
Artikelnummer: 11008471
Artikelnummer fabrikant: A9A26909
EAN Code: 3606486115152
Schneider Electric, Acti9 indication and tripping auxil, Auxiliary device for distribution b, Hulp contact, Acti9 A9A, iOF/SD+OF, 2 C/O, 100mA tot 6A, 24VAC tot 415, Hulpschakelaar/foutsignaalschakelaar, AC/DC, 0,5, Aardlekautomaat en installatieautomaat
Dit Acti9 elektrische hulpelement is een modulair OC en foutcontact. De 2 contacten (2 NO/NC) kunnen de signaleringsinformatie van het bijbehorende apparaat rapporteren. In het wisselstroomnetwerk is de nominale stroom van 100 mA tot 6A met een bedrijfsfrequentie van 50Hz tot 60Hz bij 240VAC, en van 100mA tot 3A met een bedrijfsfrequentie van 50Hz tot 60Hz bij 415VAC. In het gelijkstroomnetwerk begint de nominale stroom altijd bij 100 mA bij 24 V DC tot 130 V DC. Het gaat omhoog 6A bij 24VDC, 2A bij 48VDC, 1.5A bij 60VDC en 1A bij 130VDC. Het heeft 2 positieschakelaars met contacten type 2 C/O. Het is bedoeld voor nieuwe of gerenoveerde installatie in kleine commerciële of gebouwen. Dit OC en fout contact is compatibel met Acti9 bereiken zoals iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC60 en iID dubbele klemmen reststroom vermogensschakelaar (RCCB). Het OC en het foutcontact worden alleen geïnstalleerd voor Acti9-bereiken zoals iID, iDPN Vigi, iSW-NA, ARA, iC60 en RCA appara
| Nom. (meet)spanning | 240 V |
| Aantal contacten als verbreekcontact | 0 |
| Aantal contacten als maakcontact | 0 |
| Aantal contacten als wisselcontact | 2 |
| Aantal foutsignaalschakelaars | 1 |
| Breedte in module-eenheden | 0,5 |
| Nom. (meet)schakelstroom | 0,1 A |
| Apparaatmontage | Aardlekautomaat en installatieautomaat |
| Geschikt voor max. aantal polen hoofdapparaat (totaal) | 4 |
| Geschikt voor max. stroom hoofdapparaat | 63 A |
| Met autotest voor aardlekfunctie | Nee |
| Model | Acti9 indication and tripping auxil |
