SAREL autom kast 3x12 modulen 13985

Artikelnummer 11010359

Artikelnummer: 11010359
Artikelnummer fabrikant: 13985
EAN Code: 3303430139850

Schneider Electric, Mureva Enclosure, Installatiekast met DINrail leeg, Mureva - Verdeler met DIN-rail - 3x12 modulen - Met aarde verdeelblok, Opbouw (stucwerk), Grijs, Deur, Met uitsparing, Kunststof, Enkel, IP65, Gesloten

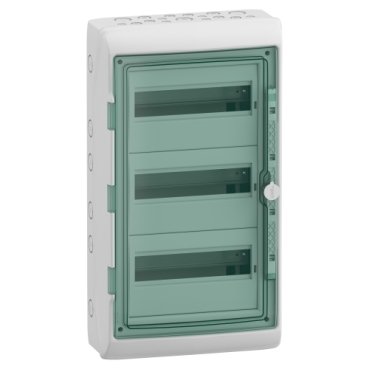

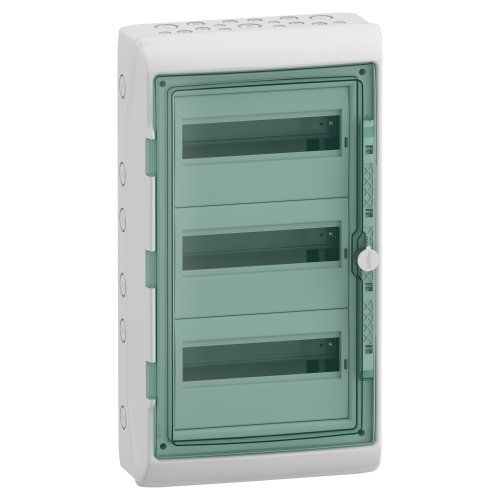

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 3 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 32 outgoers (16x10mm² + 16x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 46W. The In rated current is up to 125A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 340mm x (H) 610mm x (D) 160mm. The mat

Aantal in de verpakking: 1 pc

Omschrijving

Artikelnummer: 11010359
EAN Code: 3303430139850

Schneider Electric, Opbouw (stucwerk), Grijs, 340 mm, 610 mm, 160 mm, 7.035, 3, Deur, 88 mm, Met uitsparing, Kunststof, 12, Enkel, IP65, Gesloten, Mureva Enclosure, Italië (IT)

Eigenschappen
Algemeen
Kleur Grijs
Beschermingsgraad (IP) IP65
Breedte 340 mm
RAL-nummer 7.035
Montagewijze Opbouw (stucwerk)
Hoogte 610 mm
Diepte 160 mm
Met montageplaat Ja
Soort afdekking Deur
Aanbouwmogelijkheid Ja
Materiaal behuizing Kunststof
Type deur Enkel
Transparant deksel/deur Ja
Uitvoering deksel Gesloten
Breedte in module-eenheden 12
Verzegelbaar Ja
EMC-uitvoering Nee
Type sluiting Overig
Aantal rijen 3
Met slot Nee
DIN-rail Ja
Aard-verbindingsblok Ja
Nulleider verbindingsblok Nee
Signaaldoorlatende deur Ja
Met transparant deksel Ja
Met N-verbreekslede Nee
Inwendige diepte 88 mm
Type deksel Met uitsparing
Model Mureva Enclosure
EF019067 0
Land van herkomst Italië (IT)
